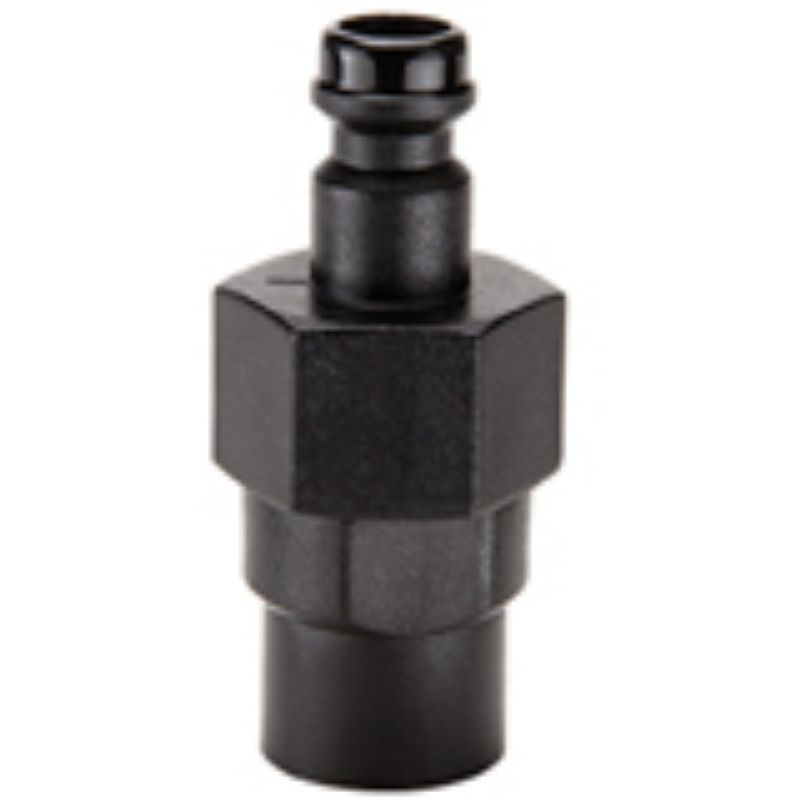

Parker S2-ANV-04-FP - Thermoplastic, Low Pressure Quick Couplings - Spectrum Series

Note: This product is no longer available - please contact us for further assistance.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. S2-ANV-04-FP

$14.02/each

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	Acetal
Application	Low pressure fluids and gases	Product Type	Push-to-Connect
Minimum Operating Temperature	0 °F	Seal Material	Nitrile
Maximum Operating Pressure	145 psi	Valve Type	Poppet
Division	Quick Coupling Division	Maximum Operating Temperature	180 °F
Spring Material	316 Stainless steel	Hex Size	0.67 inch
Connection Type	Female NPT	Coupling Half	Male Nipple
Connection Thread Size (inch)	1/4 - 18	Connection Tube Inside Diameter	na
Body Size (inch)	1/8	Flow Rate	1.5
