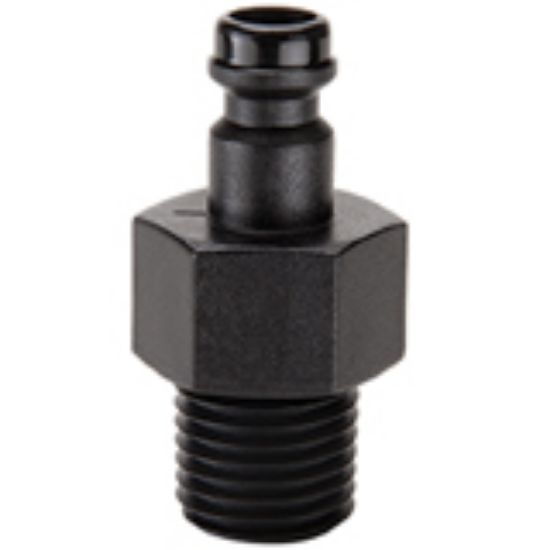

Parker S2-ANS-04-MP - Thermoplastic, Low Pressure Quick Couplings - Spectrum Series

Note: This product is no longer available - please contact us for further assistance.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. S2-ANS-04-MP

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Product Type	Push-to-Connect	Maximum Operating Temperature	180 °F
Valve Type	Unvalved	Application	Low pressure fluids and gases
Spring Material	316 Stainless steel	Division	Quick Coupling Division
Maximum Operating Pressure	145 psi	Body Material	Acetal
Hex Size	0.67 inch	Minimum Operating Temperature	0 °F
Seal Material	Nitrile	Connection Thread Size (inch)	1/4 - 18
Coupling Half	Male Nipple	Connection Type	Male NPT
Connection Tube Inside Diameter	na	Flow Rate	1.5
Body Size (inch)	1/8

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
