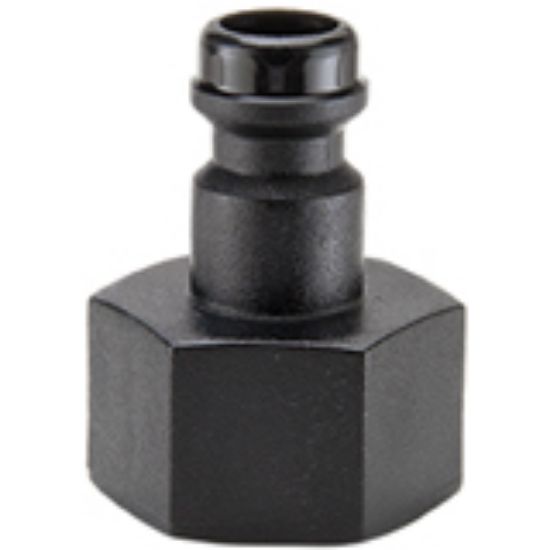

Parker S2-ANS-04-FP - Thermoplastic, Low Pressure Quick Couplings - Spectrum Series

Note: This product is no longer available - please contact us for further assistance.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. S2-ANS-04-FP

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Maximum Operating Temperature	180 °F	Spring Material	316 Stainless steel
Application	Low pressure fluids and gases	Body Material	Acetal
Maximum Operating Pressure	145 psi	Division	Quick Coupling Division
Hex Size	0.67 inch	Minimum Operating Temperature	0 °F
Seal Material	Nitrile	Valve Type	Unvalved
Product Type	Push-to-Connect	Connection Type	Female NPT
Connection Thread Size (inch)	1/4 - 18	Coupling Half	Male Nipple
Connection Tube Inside Diameter	na	Body Size (inch)	1/8
Flow Rate	1.5
