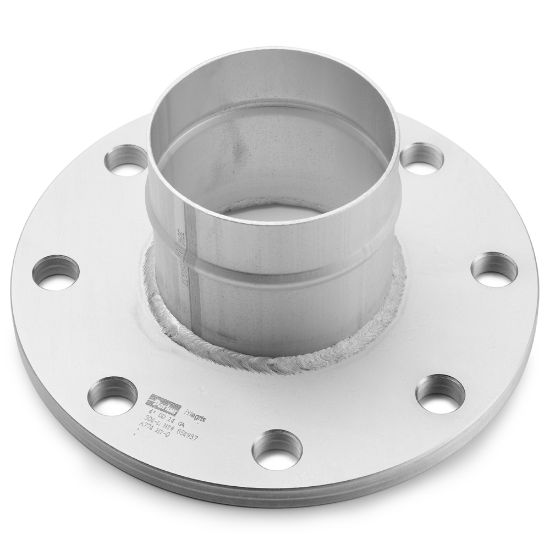

Parker RX31 L3 00* - Transair® Fittings for Stainless Steel Pipe

Transair Fittings for Stainless Steel Pipe are quick and easy to install. Available in EPDM and FKM seals for maximum chemical compatibility.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. RX31 L3 00*

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Product Style	ANSI Flange Adapter	Connection 1 Size	100
For Fluid Type	Industrial Gas	Connection 2 Type	Flange
Maximum Operating Temperature	185	Connection 2 Size	4
Connection 1 Type	Pipe	Assembly Time	0.25
Weight	3.45	Configuration	Port to Flange
Quantity per Box	1.0	Body Material	Stainless Steel 304
Brand	Parker	Technology	Fluid & Gas Handling
Application	Compressed Air	Division	Fluid System Connectors Division
Shape	Straight	Product Type	Compressed Air Piping
Maximum Operating Pressure	16 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca	Minimum Operating Temperature	-20
Division	Fluid System Connectors Division	Vacuum Pressure Rating	0.03
Pipe O.D. 2 (inch)	N/A	Pipe O.D. (inch)	4
Shape	ANSI Flange Adapter	Seal Material	N/A
Connection Thread Size (inch)	n/a	Pipe O.D. 2 (mm)	N/A
Pipe O.D. (mm)	101
