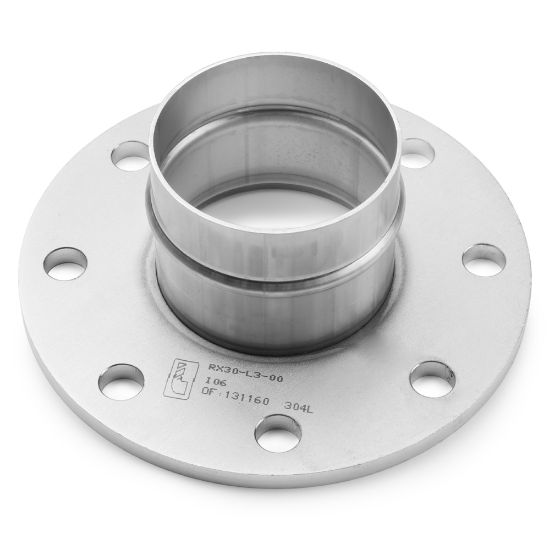

Parker RX30 L3 00* - Transair® Fittings for Stainless Steel Pipe

Transair Fittings for Stainless Steel Pipe are quick and easy to install. Available in EPDM and FKM seals for maximum chemical compatibility.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. RX30 L3 00*

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Configuration	Port to Flange	Assembly Time	0.25
Body Material	Stainless Steel 304	Brand	Parker
Quantity per Box	1.0	Shape	Straight
Division	Fluid System Connectors Division	Technology	Fluid & Gas Handling
Product Style	ISO Flange Adapter	Vacuum Pressure Rating	1
Minimum Operating Temperature	-20	Connection 2 Size	100
Maximum Operating Pressure	16 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca	Product Type	Compressed Air Piping
Weight	2.680	Application	Vacuum
Connection 1 Size	100	Maximum Operating Temperature	185
Connection 1 Type	Pipe	For Fluid Type	Industrial Gas
Division	Low Pressure Connectors Europe Division	Connection 2 Type	Flange
Seal Material	N/A	Connection Thread Size (inch)	n/a
Pipe O.D. 2 (mm)	N/A	Shape	DIN Flange Adapter
Pipe O.D. (mm)	101	Pipe O.D. (inch)	4
Pipe O.D. 2 (inch)	N/A
