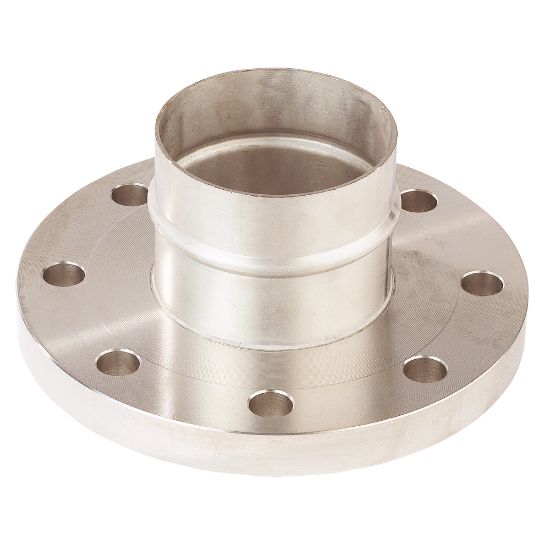

Parker RX30 L1 00 01 - Transair® Fittings for Stainless Steel Pipe

Transair Fittings for Stainless Steel Pipe are quick and easy to install. Available in EPDM and FKM seals for maximum chemical compatibility.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. RX30 L1 00 01

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Pipe Outside Diameter	76 mm	Assembly Time	0.25 Hours
Division	Fluid System Connectors Division	Product Type	Flange Adapter
Application	Compressed Air	Weight	1.94 kg
Minimum Operating Temperature	-20 °C	Brand	Transair
Maximum Operating Temperature	194 °F	Division	Low Pressure Connectors Europe Division
Maximum Operating Pressure	145 psi	Quantity per Box	1.0
Vacuum Pressure Rating	0.03 inch-Hg	Seal Material	N/A
Pipe O.D. (mm)	76	Connection Thread Size (inch)	n/a
Pipe O.D. (inch)	3	Pipe O.D. 2 (mm)	N/A
Shape	DIN Flange Adapter	Pipe O.D. 2 (inch)	N/A

Product resources

Compliance, Certifications & Safety

Transair Regulations & Certifications (PDF)

Literature and Reference Materials

Transair Master Catalog (PDF)

Selector Guides

Transair Chemical Compatibility Chart for Stainless Steel Pipe (PDF)
