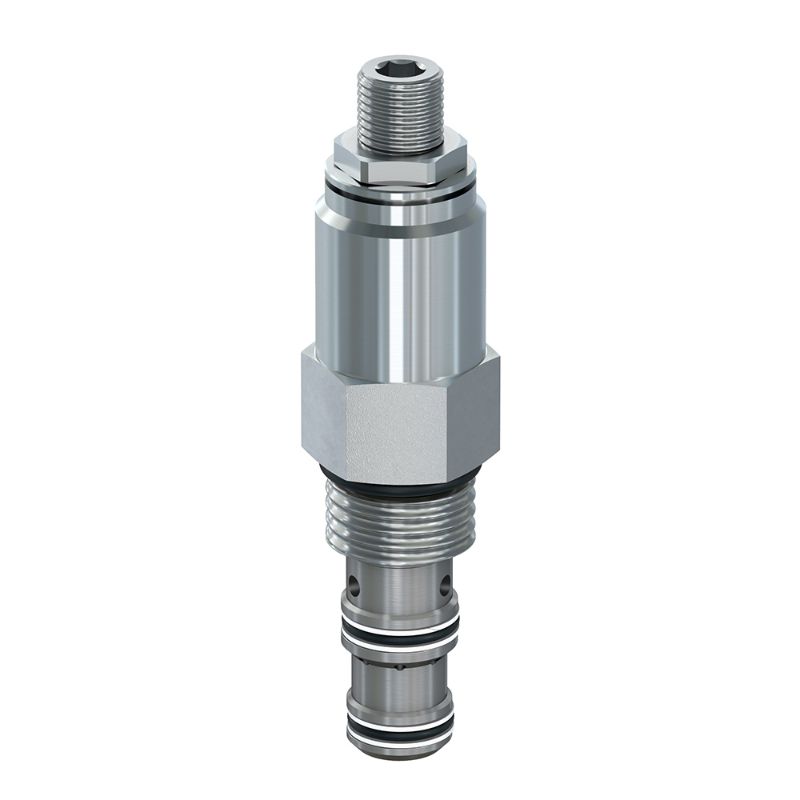

Parker RU101S10CV - Unloading Relief Valves

Parker’s unloading pressure control valves automatically charge and maintain a specific pressure range within accumulators by loading and unloading pump flow. Usable with fixed or variable pumps and pressure of 420 bar (6000 psi) and flow up to 1 gpm.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. RU101S10CV

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Pressure Control Range	6.9-69 bar	Operating Temperature	-15 to +400 °F
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Maximum Operating Temperature	+204 °C
Minimum Operating Temperature	-26 °C	Maximum Pressure Setting	69 bar
Adjustment Mechanism	Screw	Maximum Tank Pressure	3000 psi
Valve Material	All parts steel. All operating parts hardened steel	Function	Unloading Relief Valve
Body Material	n/a	Division	Hydraulic Cartridge Systems Division
Actuation Type	Pressure Sensing	Seal Material	Fluorocarbon
Division	Hydraulic Systems Division	Leak Rate	10 (port 2 to 3), 60 (port 1 to 2) drops/min
Maximum Operating Pressure	245 bar	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Maximum Flow Rate	1 Gal/min
Maximum Inlet Pressure Rating	245 bar	Installation Torque	22 Nm
Flow Rate	1 Gal/min	Standard Setting Pressure	500 psi
Weight	0.5 lb	Cavity Size	C10-3
Maximum Flow Rate	1 GAL/MIN, 3.75 L/MIN	Pressure Control Range	100-1000 PSI, 6.9-69 BAR
Adjustment Mechanism	Screw	Seal Material	Fluorocarbon
