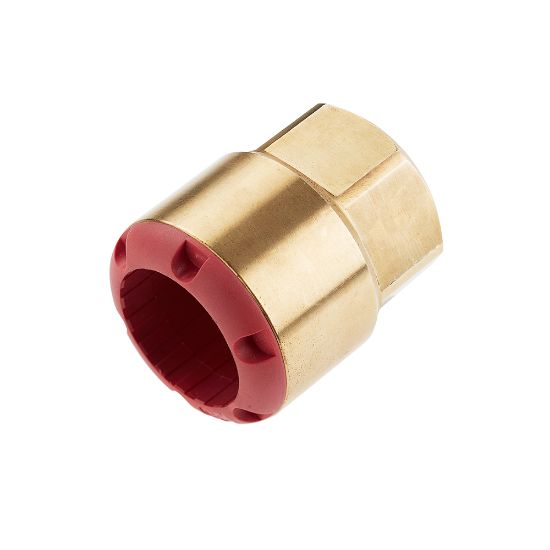

Parker RR25 N7 02 - Transair® Fittings for Stainless Steel Pipe

Transair Fittings for Stainless Steel Pipe are quick and easy to install. Available in EPDM and FKM seals for maximum chemical compatibility.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. RR25 N7 02

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Maximum Operating Pressure	10 bar	Brand	Transair
Shape	End Cap	Minimum Operating Temperature	-20 °C
Division	Fluid System Connectors Division	Quantity per Box	5.0
Configuration	Pipe to End	Seal Material	FKM
Connection 1 Type	Pipe	Pipe Outside Diameter	22 mm
Product Type	Stud Fitting	Weight	0.18 lb
Assembly Time	0.02 Hours	Vacuum Pressure Rating	0.03 inch-Hg
Maximum Operating Temperature	90 °C	Connection 1 Size	3/4 inch
Application	Compressed Air	Division	Fluid System Connectors Division
Pipe O.D. 2 (mm)	N/A	Pipe O.D. (mm)	22
Pipe O.D. 2 (inch)	N/A	Shape	End Cap
Pipe O.D. (inch)	3/4	Connection Thread Size (inch)	n/a
Seal Material	FKM

Product resources

Compliance, Certifications & Safety

Transair Regulations & Certifications (PDF)

Literature and Reference Materials

Transair Master Catalog (PDF)

Selector Guides

Transair Chemical Compatibility Chart for Stainless Steel Pipe (PDF)
