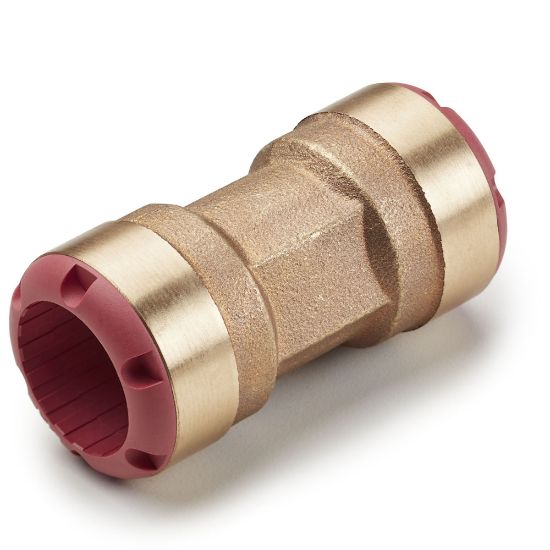

Parker RR06 N7 02 - Transair® Fittings for Stainless Steel Pipe

Transair Fittings for Stainless Steel Pipe are quick and easy to install. Available in EPDM and FKM seals for maximum chemical compatibility.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. RR06 N7 02

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Product Style	Union Fitting	Connection 2 Type	Pipe
Connection 1 Type	Pipe	Seal Material	FKM
Minimum Operating Temperature	-4 °F	Connection 2 Size	22 mm
Pipe Outside Diameter	3/4 inch	Vacuum Pressure Rating	0.03 inch-Hg
Assembly Time	0.04 Hours	Shape	Straight
Application	Compressed Air	Connection 1 Size	22 mm
Configuration	Pipe to Pipe	Division	Fluid System Connectors Division
Maximum Operating Temperature	90 °C	Quantity per Box	5.0
Brand	Transair	Maximum Operating Pressure	10 bar
Weight	0.13 kg	Product Type	Union Fitting
Division	Fluid System Connectors Division	Pipe O.D. (mm)	22
Shape	Union	Pipe O.D. 2 (inch)	N/A
Pipe O.D. (inch)	3/4	Connection Thread Size (inch)	n/a
Seal Material	FKM	Pipe O.D. 2 (mm)	N/A

Product resources

Compliance, Certifications & Safety

Transair Regulations & Certifications (PDF)

Literature and Reference Materials

Transair Master Catalog (PDF)

Selector Guides

Transair Chemical Compatibility Chart for Stainless Steel Pipe (PDF)
