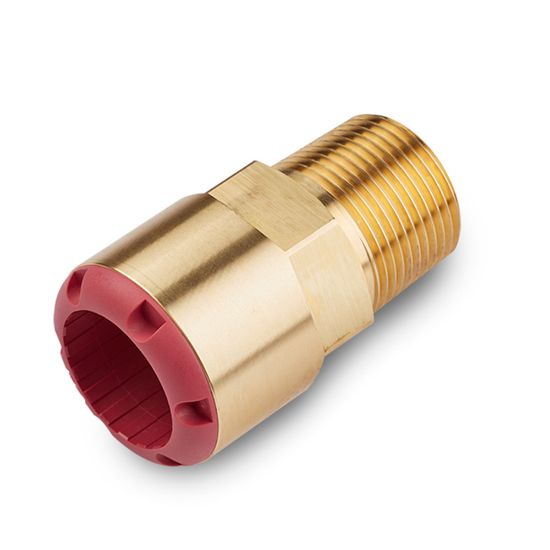

Parker RR05 N7N06 02 - Transair® Fittings for Stainless Steel Pipe

Transair Fittings for Stainless Steel Pipe are quick and easy to install. Available in EPDM and FKM seals for maximum chemical compatibility.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. RR05 N7N06 02

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Connection 1 Size	22 mm	Shape	Straight
Configuration	Pipe to Port	Division	Fluid System Connectors Division
Brand	Transair	Product Type	Compressed Air Piping
Minimum Operating Temperature	-20 °C	Maximum Operating Temperature	194 °F
Quantity per Box	2.0	Connection 1 Type	Pipe
Seal Material	FKM	Division	Low Pressure Connectors Europe Division
Application	Inert Gases	Maximum Operating Pressure	145 psi
Connection 2 Type	Male NPT	Vacuum Pressure Rating	0.03 inch-Hg
Assembly Time	0.17 Hours	Pipe Outside Diameter	22 mm
Product Style	Stud Fitting	Connection 2 Size	3/4 inch
Weight	0.50 lb	Pipe O.D. (inch)	3/4
Seal Material	FKM	Pipe O.D. 2 (mm)	N/A
Pipe O.D. (mm)	22	Pipe O.D. 2 (inch)	N/A
Shape	Transair Female to Male NPT Adapter	Connection Thread Size (inch)	3/4

Product resources

Compliance, Certifications & Safety

Transair Regulations & Certifications (PDF)

Literature and Reference Materials

Transair Master Catalog (PDF)

Selector Guides

Transair Chemical Compatibility Chart for Stainless Steel Pipe (PDF)
