*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

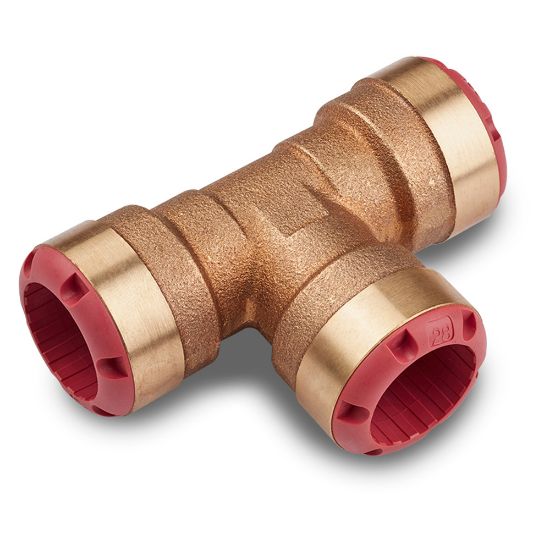

Parker RR04 N7 02 - Transair® Fittings for Stainless Steel Pipe

Transair Fittings for Stainless Steel Pipe are quick and easy to install. Available in EPDM and FKM seals for maximum chemical compatibility.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. RR04 N7 02

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Product Style	Tee	Vacuum Pressure Rating	0.03 inch-Hg
Connection 3 Type	Pipe	Connection 1 Size	3/4 inch
Product Type	Tee	Configuration	Pipe to Pipe
Application	Chemical Transfer	Connection 3 Size	3/4 inch
Division	Fluid System Connectors Division	Brand	Transair
Maximum Operating Pressure	10 bar	Weight	0.46 lb
Quantity per Box	5.0	Shape	Tee
Maximum Operating Temperature	194 °F	Assembly Time	0.06 Hours
Seal Material	FKM	Division	Low Pressure Connectors Europe Division
Connection 1 Type	Pipe	Connection 2 Size	22 mm
Pipe Outside Diameter	3/4 inch	Connection 2 Type	Pipe
Minimum Operating Temperature	-4 °F	Pipe O.D. (inch)	3/4
Seal Material	FKM	Connection Thread Size (inch)	n/a
Pipe O.D. 2 (mm)	N/A	Shape	Equal Tee
Pipe O.D. (mm)	22	Pipe O.D. 2 (inch)	N/A

Product resources

Compliance, Certifications & Safety

Transair Regulations & Certifications (PDF)

Literature and Reference Materials

Transair Master Catalog (PDF)

Selector Guides

Transair Chemical Compatibility Chart for Stainless Steel Pipe (PDF)
