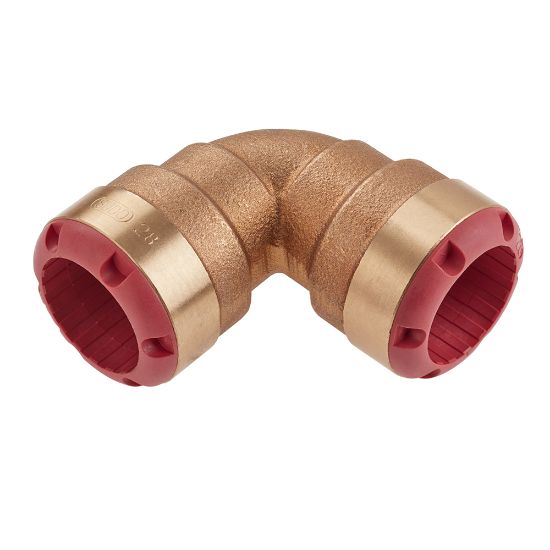

Parker RR02 N7 02 - Transair® Fittings for Stainless Steel Pipe

Transair Fittings for Stainless Steel Pipe are quick and easy to install. Available in EPDM and FKM seals for maximum chemical compatibility.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. RR02 N7 02

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Weight	0.16 kg	Maximum Operating Pressure	10 bar
Brand	Transair	Quantity per Box	5.0
Maximum Operating Temperature	194 °F	Division	Fluid System Connectors Division
Connection 1 Type	Pipe	Minimum Operating Temperature	-4 °F
Application	Industrial Gas	Product Type	Elbow
Seal Material	FKM	Connection 2 Size	22 mm
Connection 2 Type	Pipe	Pipe Outside Diameter	3/4 inch
Vacuum Pressure Rating	0.03 inch-Hg	Connection 1 Size	22 mm
Assembly Time	0.04 Hours	Product Style	Elbow
Configuration	Pipe to Pipe	Shape	Elbow 90°
Division	Fluid System Connectors Division	Pipe O.D. 2 (mm)	N/A
Seal Material	FKM	Pipe O.D. 2 (inch)	N/A
Shape	90° Elbow	Pipe O.D. (mm)	22
Pipe O.D. (inch)	3/4	Connection Thread Size (inch)	n/a

Product resources

Compliance, Certifications & Safety

Transair Regulations & Certifications (PDF)

Literature and Reference Materials

Transair Master Catalog (PDF)

Selector Guides

Transair Chemical Compatibility Chart for Stainless Steel Pipe (PDF)
