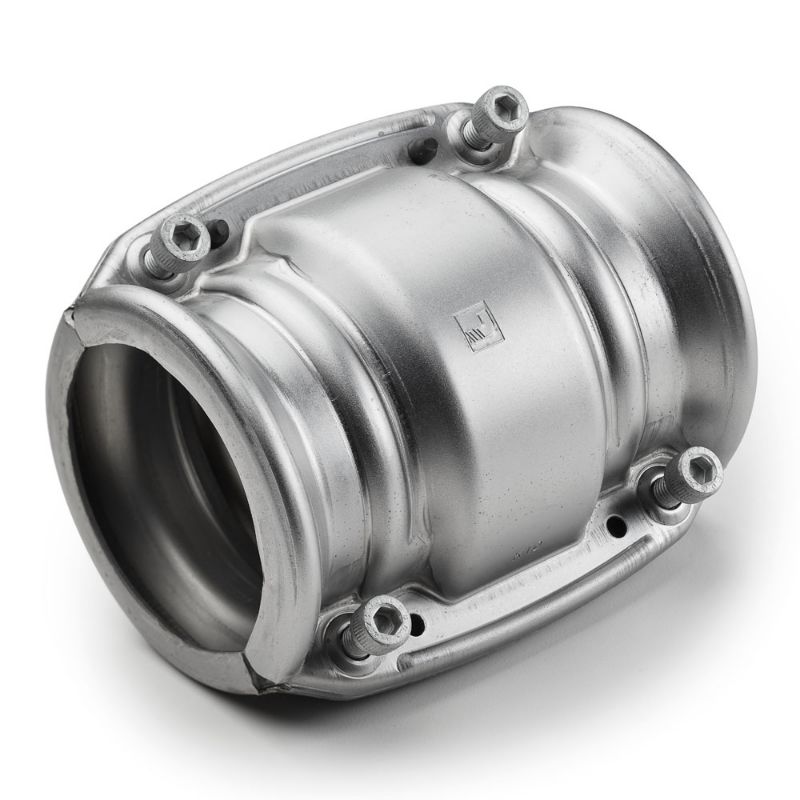

Parker RR01 L3 00 - Transair® Fittings for Aluminum Pipe

Transair Fittings install fast and with minimal tooling required. All Transair fittings are designed to securely fit around Transair aluminum pipe, increasing system efficiency and preventing compressed air leaks.

AFP Availability:	Quote Required
Partner Available:	222 In Stock

Brand Parker

Part No. RR01 L3 00

$86.26/each

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 1 Type	Pipe
Brand	Transair	Weight	1.417 kg
Industry	General Industrial	Maximum Operating Pressure	16 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca
Connection 2 Size	4 inch	Vacuum Pressure Rating	0.03 inch-Hg
Configuration	Pipe to Pipe	Assembly Time	0.15 Hours
For Fluid Type	Industrial Gas	Division	Low Pressure Connectors Europe Division
Technology	Pneumatics	Maximum Operating Temperature	185 °F
Quantity per Box	6	Connection 2 Type	Pipe
Body Material	Treated Steel	Connection 1 Size	4 inch
Division	Low Pressure Connectors Europe Division	Product Style	Union Fitting
Shape	Straight	Minimum Operating Temperature	-4 °F
Product Type	Compressed Air Piping	Specifications Met	EN 573.3
Application	Vacuum	Product Style	Pipe
Silicone Free	Yes	Connection Thread Size (inch)	n/a
Pipe O.D. 2 (mm)	N/A	Pipe O.D. 2 (inch)	N/A
Pipe O.D. (inch)	4	Pipe O.D. (mm)	100
