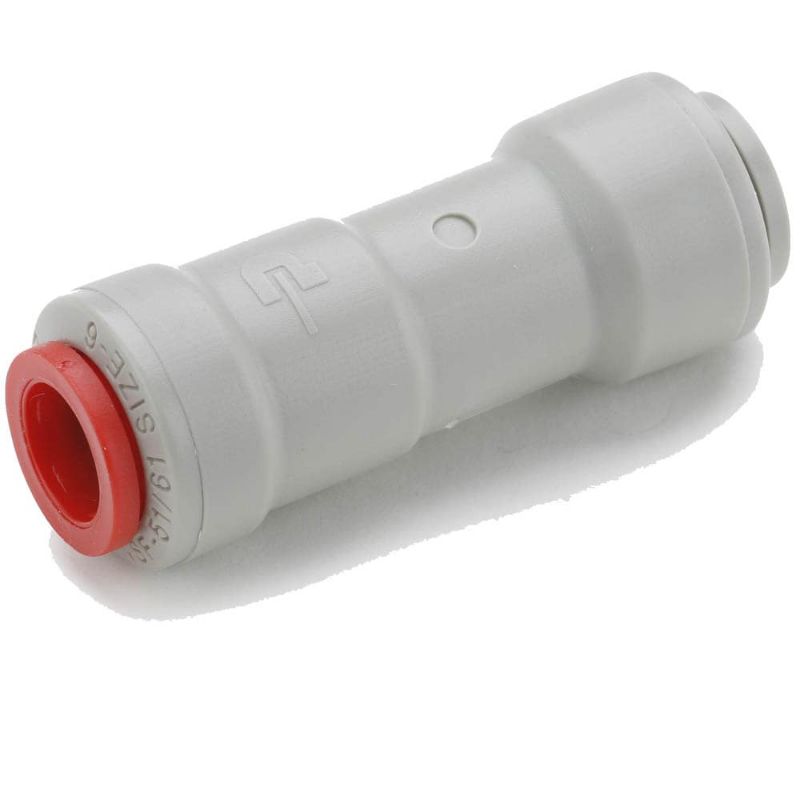

Parker A4VC4-MG - TrueSeal Acetal & Kynar Check Valves - Push to Connect

Parker's Push-to-Connect check valves are manufactured from either acetal or kynar material and allow liquid to flow in one direction.

AFP Availability:	Quote Required
Partner Available:	115 In Stock

Brand Parker

Part No. A4VC4-MG

$11.39/each

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Fluid System Connectors Division
Connection Type	n/a	For Fluid Type	Water
Maximum Operating Temperature	65 °C	Connection 1 Size	1/4 inch Tube O.D.
Connection 2 Type	Push-to-Connect	Body Material	Acetal
Minimum Operating Temperature	1 °C	Valve Configuration	One Way
Shape	In-Line	Application	Textile
Seal Material	EPDM	Connection 1 Type	Push-to-Connect
Gripping Ring Material	Stainless Steel	Maximum Operating Pressure	145 psi
Connection 2 Size	n/a	Configuration	Tube to Tube
Cracking Pressure	1/3 psi	Connection 1 Tube Outside Diameter	1/4" (O.D.)
Body Material	Acetal	Cracking Pressure	1/3
Collet Material	Red	Connection 2 Tube Outside Diameter	1/4" (O.D.)
Configuration	Tube to Tube
