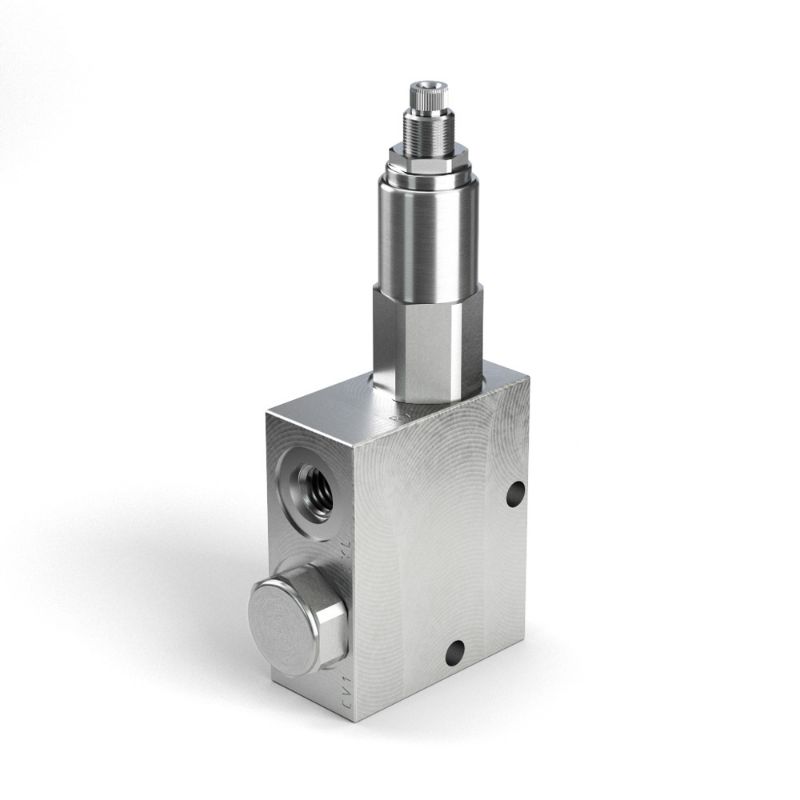

Parker RDCH103F10N-8T - Direct Acting Differential Area Relief Valves

Parker’s direct acting differential area relief valves are for fast response intermittent applications and work up to 380 bar (5500 psi) and 151 lpm (40 gpm). These valves have lower leakage rates and pressure rise than standard direct acting reliefs.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. RDCH103F10N-8T

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Seal Material	Nitrile	Body Material	Steel
Minimum Operating Temperature	-30	Division	Hydraulic Systems Division
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Weight	2.7
Cavity Size	n/a	Cracking Pressure	5
Maximum Operating Pressure	5500	Function	Direct Acting
Actuation Type	Pressure Sensing	Operation Type	Automatic
Maximum Tank Pressure	5000	Pressure Control Sensitivity	n/a
Maximum Flow Rate	16	Flow Rate	16
Adjustment Mechanism	Fixed	Maximum Inlet Pressure Rating	5500
Mounting Type	Line Mounted	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Valve Material	All parts steel. All operating parts hardened steel	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Operating Temperature	-30 to +250	Maximum Operating Temperature	+250
Installation Torque	N/A	Port Thread Size	SAE-8
Maximum Pressure Setting	1000	Standard Setting Pressure	500
Pressure Control Range	100-1000	Leak Rate	5 @ 75% Crack Pressure
Reseat Pressure	85% of pressure setting	Configuration	Differential Area Relief, Differential Relief w/Reverse Flow Check
Minimum Operating Pressure	380	Seal Material	Nitrile
Adjustment Mechanism	Fixed	Flow Rate	16 GAL/MIN, 60 L/MIN
Cracking Pressure	5 PSI, 0.3 BAR	Maximum Inlet Pressure Rating	5500 PSI, 380 BAR
Mounting Type	Line Mounted	Pressure Control Range	100-1000 PSI, 6.9-69 BAR
Standard Setting Pressure	500 PSI, 34.5 BAR
