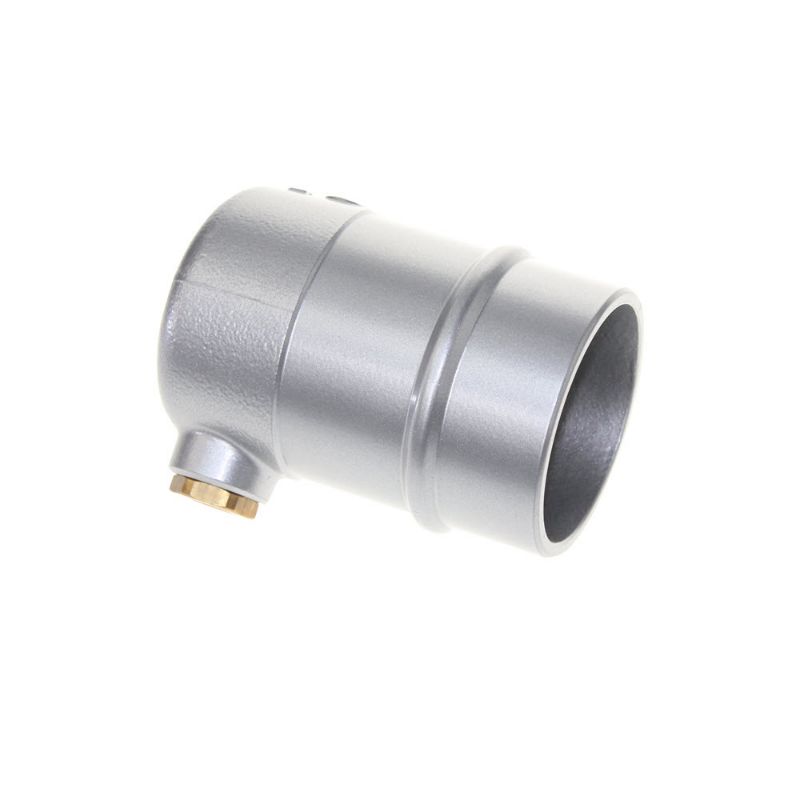

Parker RA25 L8 04 - Transair® Fittings for Aluminum Pipe

Transair Fittings install fast and with minimal tooling required. All Transair fittings are designed to securely fit around Transair aluminum pipe, increasing system efficiency and preventing compressed air leaks.

Availability:	Quote Required
Partner Available:	3 In Stock

Brand Parker

Part No. RA25 L8 04

$238.71

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Brand	Parker
Product Type	Compressed Air Piping	Minimum Operating Temperature	-4 °F
Industry	General Industrial	Division	Fluid System Connectors Division
Division	Low Pressure Connectors Europe Division	Application	Compressed Air
Technology	Pneumatics	Body Material	Treated Aluminum
Specifications Met	ASME B31.1 - 31.9	Vacuum Pressure Rating	0.03 inch-Hg
Maximum Operating Temperature	185 °F	For Fluid Type	Industrial Gas
Connection 1 Type	Pipe	Quantity per Box	1
Weight	1.2 kg	Product Style	Union Fitting
Assembly Time	0.02 Hours	Configuration	Pipe to End
Connection 2 Type	n/a	Connection 2 Size	n/a inch
Connection 1 Size	168 mm	Shape	End Cap with plug
Maximum Operating Pressure	13 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca	Connection Thread Size (inch)	n/a
Silicone Free	Yes	Product Style	Pipe
Pipe O.D. 2 (mm)	N/A	Pipe O.D. 2 (inch)	N/A
Pipe O.D. (mm)	168	Pipe O.D. (inch)	6
