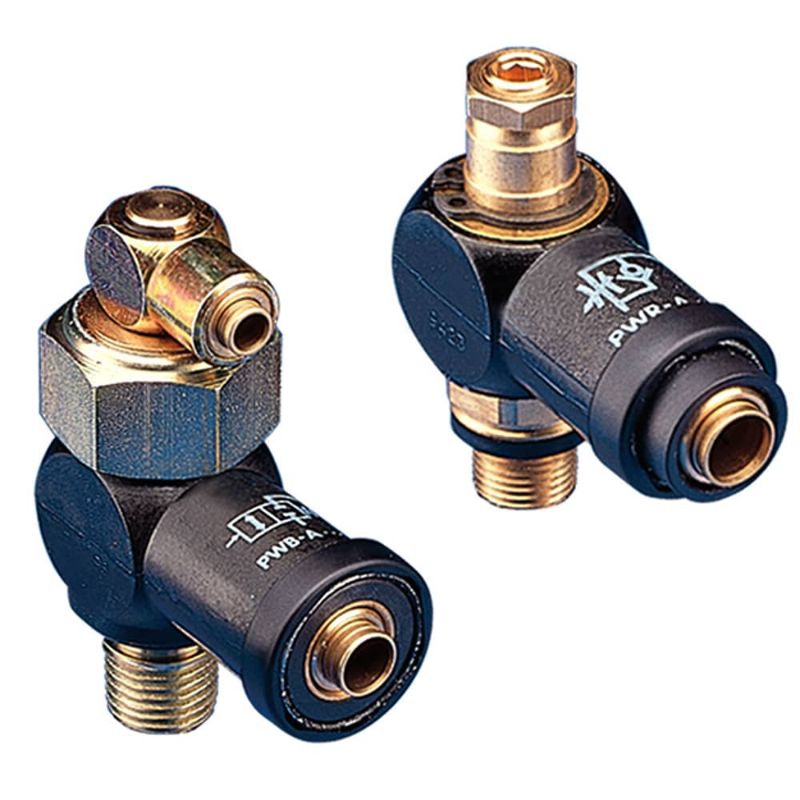

Picture of Parker PWBA3888 - Air Preparation Accessories - Blocking Valves

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker PWBA3888 - Air Preparation Accessories - Blocking Valves

The blocking valve, rated to 150 psi, is a single acting spring return 2/2 valve. The device requires a pneumatic pilot signal to open. When the pilot signal is removed, the internal spring will close the blocking valve, bubble tight.
Availability:
Quote Required
Partner Available:Quote Required
Brand Parker
Part No. PWBA3888
$40.87
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAOperational Life10 Million Cycles
Operating Temperature5 to 140Port Size1/8
Operating Pressure0 to 150Maximum Operating Frequency10
MediaInert Gases filtered to 50 micronBody MaterialZinc Alloy
DivisionPneumatic DivisionConnection Tube O.D. (inch)N/A
Port TypeNPTConnection TypeThreaded Connections & Tube Pilot Port
Port Size (inch)1/8Pilot Connection Inlet5/32" Tube
Product resources

Literature and Reference Materials
