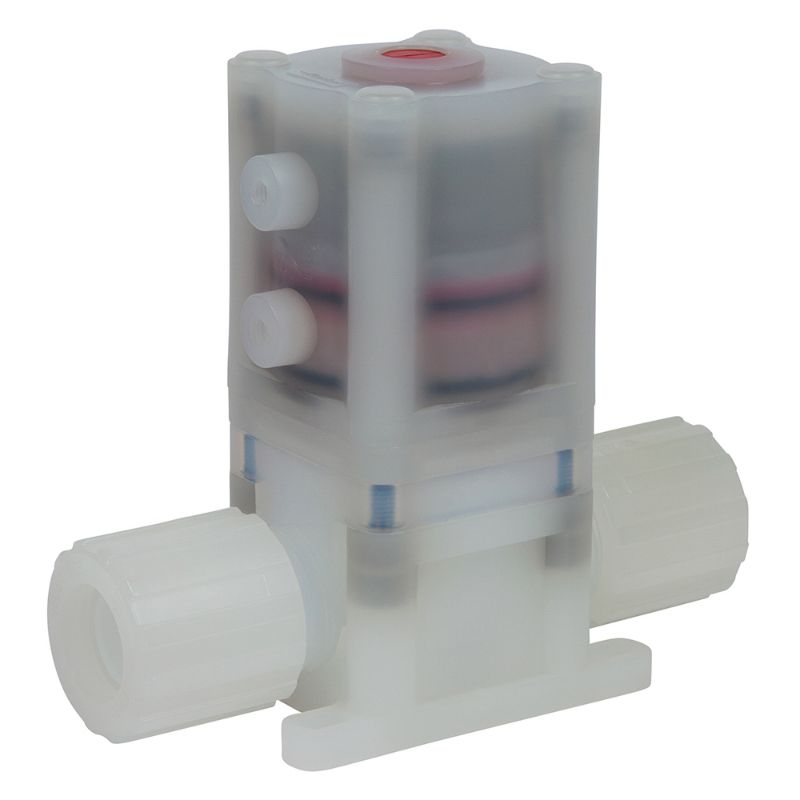

Parker PV2208VN1FL12FL12V - Ultra High Purity Fluoropolymer (PFA) Valves - 22 Series

UHP Fluoropolymer ultra clean valves are made from PFA and PTFE for semiconductor liquid applications including high concentration acids and bases, clear chemistries and slurries.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. PV2208VN1FL12FL12V

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Spring Material	SS, Fluoropolymer Coated	Body Material	PFA
Screw Material	SS	Diaphragm Material	Modified PTFE
Housing Material	PVDF	Proof Pressure	120 psig
Burst Pressure	200 psig	Flow Rate	4.3
Maximum Operating Pressure	80 psig	Division	Veriflo Division
Actuation Pressure	60 to 100 psig	Operating Temperature	32 to 212 °F
Actuation	Pnuematic-Normally Closed	Connection Material	PVDF Nut
Special Options	None	Connection 1 Style	Flare
Material Cover Type	PVDF	Connection 2 Style	Flare
Connection 2 Size	3/4"	Connection 1 Size	3/4"
Housing Connection Thread Size (inch)	10-32	Valve Size (Inch)	3/4"
