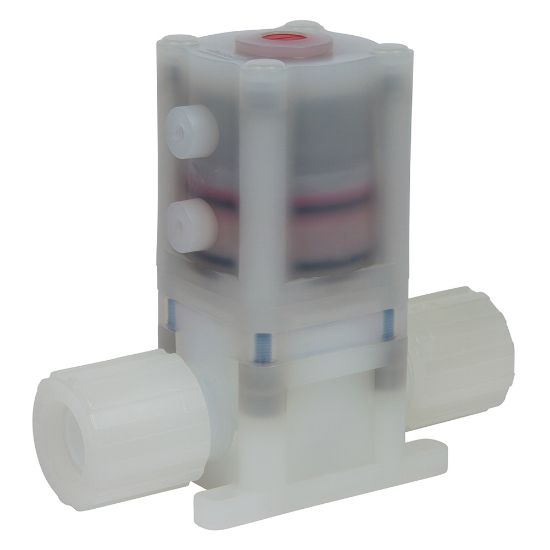

Parker PV2208VN1FL08FL08T - Ultra High Purity Fluoropolymer (PFA) Valves - 22 Series

UHP Fluoropolymer ultra clean valves are made from PFA and PTFE for semiconductor liquid applications including high concentration acids and bases, clear chemistries and slurries.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. PV2208VN1FL08FL08T

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Veriflo Division	Actuation Pressure	60 to 100 psig
Maximum Operating Pressure	80 psig	Spring Material	SS, Fluoropolymer Coated
Screw Material	SS	Body Material	PFA
Housing Material	PVDF	Diaphragm Material	Modified PTFE
Flow Rate	2.3	Operating Temperature	0 to 100 °C
Proof Pressure	120 psig	Burst Pressure	200 psig
Valve Size (Inch)	1/2"	Housing Connection Thread Size (inch)	10-32
Connection Material	PFA Nut	Connection 1 Size	1/2"
Actuation	Pnuematic-Normally Closed	Connection 2 Size	1/2"
Special Options	None	Connection 1 Style	Flare
Material Cover Type	PVDF	Connection 2 Style	Flare
