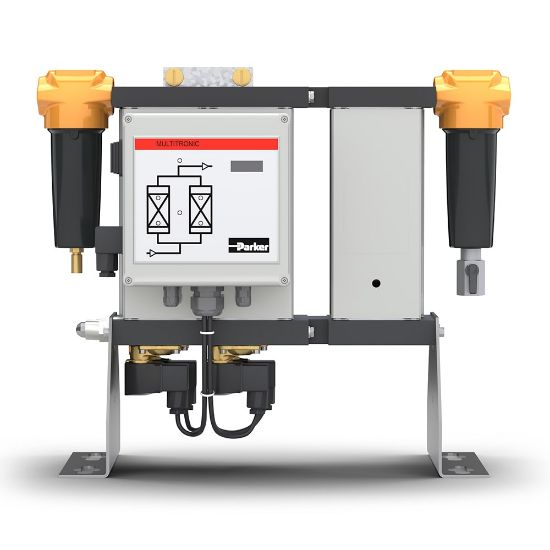

Parker K1/16DA3-G230MT - KA-MT 1-8 Series Compressed Air Adsorption Dryer With Activated Carbon Stage

Compact, heatless compressed air adsorption dryers with oil vapour removal for industrial requiring volume flows up to 86m³/h @ 7 barg and dew points of -40°C (-25°C and -70°C options available).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. K1/16DA3-G230MT

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Depth	8 inch	Technology	Filtration
Product Series	KA-MT 1-8	Product Style	Heatless with Activated Carbon Stage
Operating Pressure	4 to 16 barg	Noise Level	65 to 86 dBA
Ingress Protection Rating	IP65 Indoor and Frost Free Installation Only	Brand	Parker
Pressure Dew Point	Standard: -40°C (-40°F)<br/>	Specifications Met	PED 2014/68/EU Fluid Group II
Width	19 inch	Product Type	Compressed Air Dryer
Division	Gas Separation and Filtration Division EMEA	ISO Grade	Standard: Class 2.2.1<br/> Options: Class 2.1.1 or Class 2.3.1
Weight	33 lb	Operating Temperature	5 to 50 °C
Industry	Industrial Manufacturing Equipment<br/> Food & Beverage<br/>Automotive<br/> Electronics<br/> Pharmaceuticals<br/> Medical & Dental	Division	Gas Separation and Filtration Division EMEA
Height	16 inch	Application	Compressed Air Applications
Ambient Temperature	122.0	Connection Type	BSPP
Port Size	¼ inch	Electrical Requirements	230V 1ph 50/60Hz
Optional Accessories	Pre-installed Dew Point Sensor	Flow Rate	8 m³/h @7 barg (5 cfm @102 psig)
