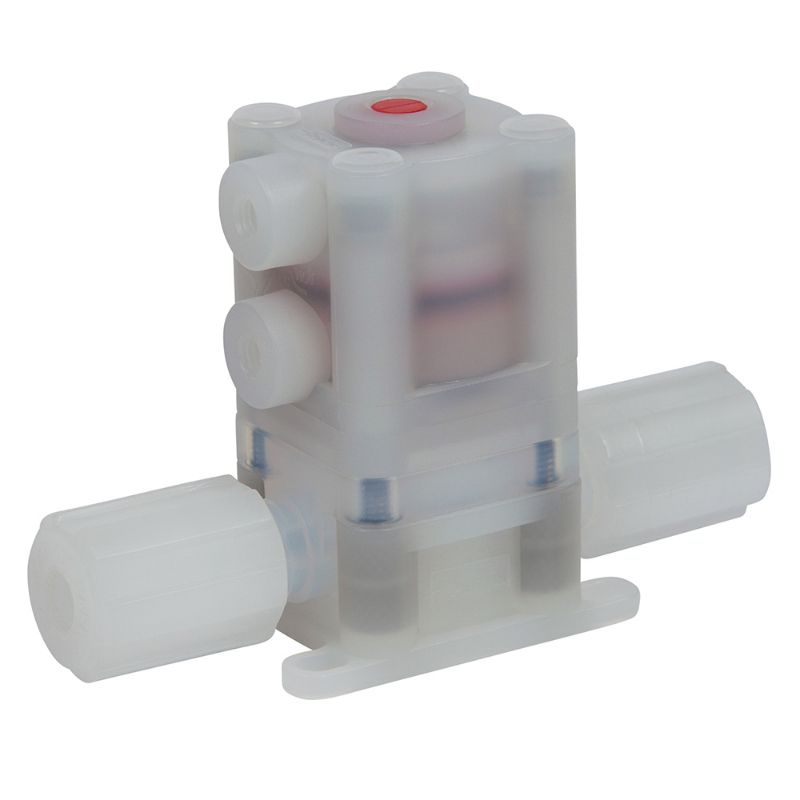

Parker PV2204VN1FL06FL06V - Ultra High Purity Fluoropolymer (PFA) Valves - 22 Series

UHP Fluoropolymer ultra clean valves are made from PFA and PTFE for semiconductor liquid applications including high concentration acids and bases, clear chemistries and slurries.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. PV2204VN1FL06FL06V

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Maximum Operating Pressure	80 psig	Actuation Pressure	60 to 100 psig
Flow Rate	0.82	Screw Material	SS
Housing Material	PVDF	Spring Material	SS, Fluoropolymer Coated
Body Material	PFA	Diaphragm Material	Modified PTFE
Proof Pressure	120 psig	Operating Temperature	0 to 100 °C
Division	Veriflo Division	Burst Pressure	200 psig
Connection 1 Size	3/8"	Connection 2 Size	3/8"
Housing Connection Thread Size (inch)	10-32	Actuation	Pnuematic-Normally Closed
Connection Material	PVDF Nut	Special Options	None
Valve Size (Inch)	3/8"	Connection 1 Style	Flare
Material Cover Type	PVDF	Connection 2 Style	Flare
