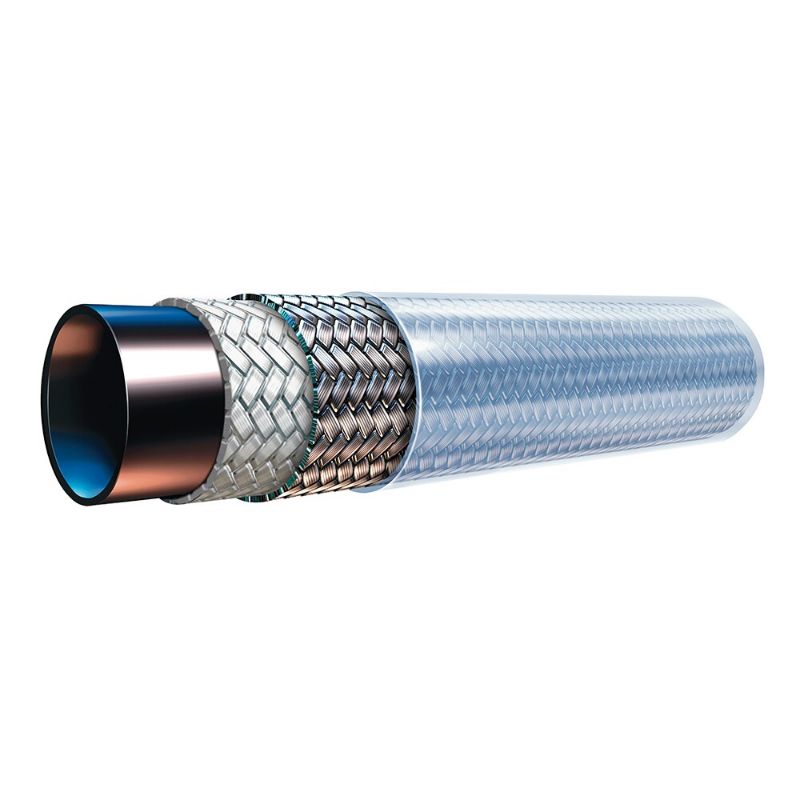

Parker PTH-3-BLK-500 - Marine Power Tilt Hose - PTH Series

Marine Power Tilt Hose features a polyurethane cover over a compact, abrasion resistant hose. It is designed for power tilt mechanisms, trim tab assemblies and jack plate assemblies.

AFP Availability:	Quote Required
Partner Available:	525 In Stock

Brand Parker

Part No. PTH-3-BLK-500

$8.34/foot

Products specifications

Attribute name	Attribute value
UOM	FT	Inside Diameter	3/16
Cover Color	Black	Division	Parflex Division
Maximum Operating Temperature	212	Compatible Fitting	92 Series
Size	-3	Media	Petroleum Hydraulic Fluids
Design Factor	4	Hose Inner Tube Material	Polyamide (PA)
Minimum Operating Temperature	-40	Application	Marine
Cover Material	Polyurethane	Specifications Met	n/a
Minimum Bend Radius	19	Maximum Operating Pressure	3000
Hose Reinforcement Material	Fiber and Stainless Steel Wire	Weight	0.08
Outside Diameter	0.430	Hose I.D. (inch)	3/16
