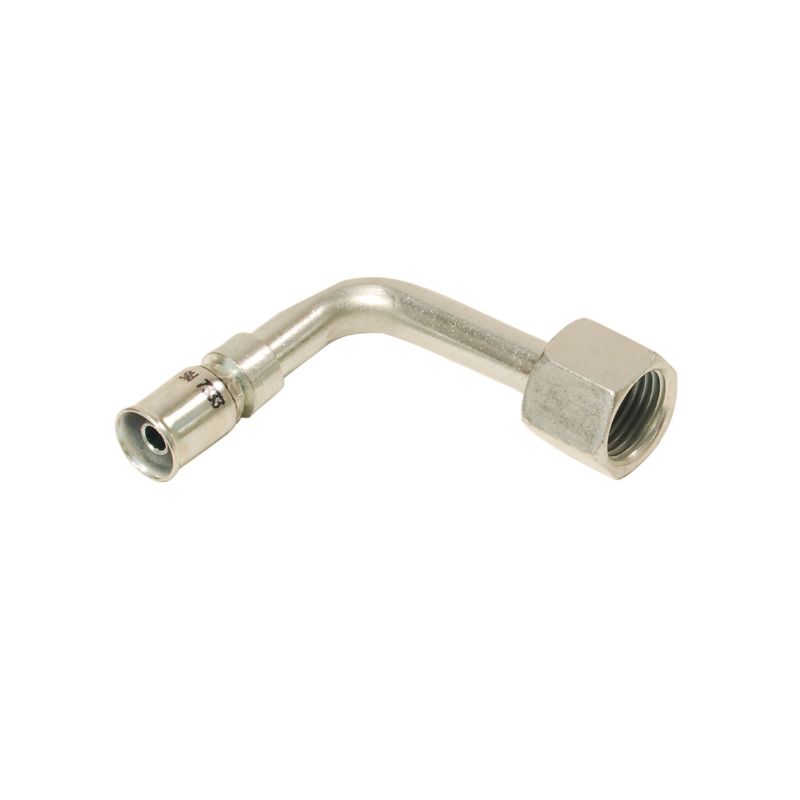

Parker 1J191N-6-6 - Permanent Fittings for PTFE Hose - 91/91N

Name: Parker 1J191N-6-6 - Permanent Fittings for PTFE Hose - 91/91N
SKU: 1J191N-6-6
Price: 48.90 USD
Availability: InStock

Parker's 91/91N Series fittings are used with 919/919B, 919J, 919U, 929/929B, and 929BJ PTFE hoses from the Parflex division.

AFP Availability:

10 In Stock

North Chesterfield, VA	5
West Knoxville, TN	5

Partner Available:

Quote Required

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. 1J191N-6-6

$48.90/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	For Fluid Type	Oil
Connection 2 Size	11/16"-16 inch Thread	Division	Parflex Division
Configuration	Hose to Port	Technology	Fluid & Gas Handling
Connection 2 Type	Female	Coating	Chromium 6 Free-plated
Connection Length	1-3/16 inch Cut-off allowance (see drawing legend B)	Connection 1 Size	-6 (Size)
Hex Size	n/a	Division	Parflex Division
Body Material	Steel	Product Type	Hose Fittings
Application	Semiconductor	Shape	Elbow 90° Long Drop
Connection 1 Type	Hose	Specifications Met	n/a
Hex Size 1	13/16 inch (see drawing legend H)	Tube Outside Diameter	n/a
Brand	Parker	Maximum Operating Pressure	3000 psi (Dependent on hose)
Industry	Transportation	Product Series	91N
Fitting Length	1.92 inch (see drawing legend A)	Hose I.D. (inch)	0.313"
Connection 2 Size	11/16"-16	Product Style	Female Seal-Lok - Swivel - 90° Elbow - Long Drop
Length (inch)	1.92"
