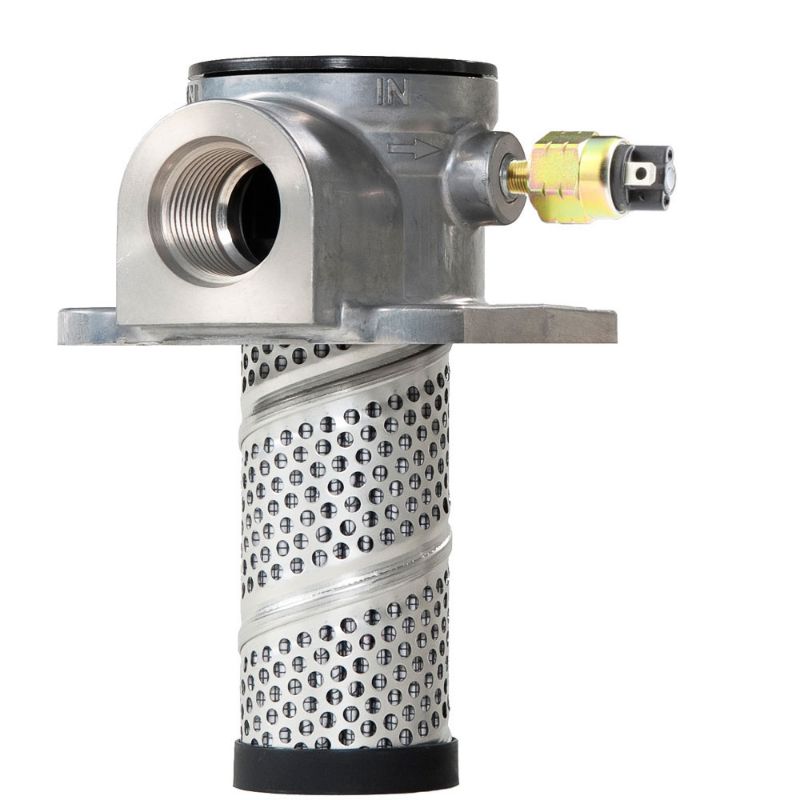

Parker PT2110QBSGS12W - Low Pressure Tank Top Filters PT Series

Parker’s PT Series Return Line Filters combine high efficiency Microglass filtration with low cost installation in a patented design. Allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 50 GPM/180 LPM depending on viscosity.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. PT2110QBSGS12W

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Housing Material	Aluminum	Weight	0.36 kg
Indicator Pressure Setting	Steel Weld Ring	Pressure Rating	10.3 bar
Division	Engine Mobile Hydraulic and Fuel Filtration Division	Seal Material	Nitrile
Options	Tank Mounted	Mounting Style	Tank Mounted
Bypass Valve Pressure Rating	25.0 psid	Maximum Operating Temperature	225.0 °F
Indicator Type	Pressure Switch	Filter Element Type	10Q Microglass
Flow Rate	10.0 Gal/min	Compatible Element	936752
For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids	Indicator Type	Pressure Switch
Flow Rate	10 gpm (37.8 lpm)	Bypass Valve Pressure Rating	25 psid (1.7 bar)
Filter Element Type	10Q Microglass	Port Connection Type	SAE-12
Seal Material	Nitrile	Options	Steel weld ring
