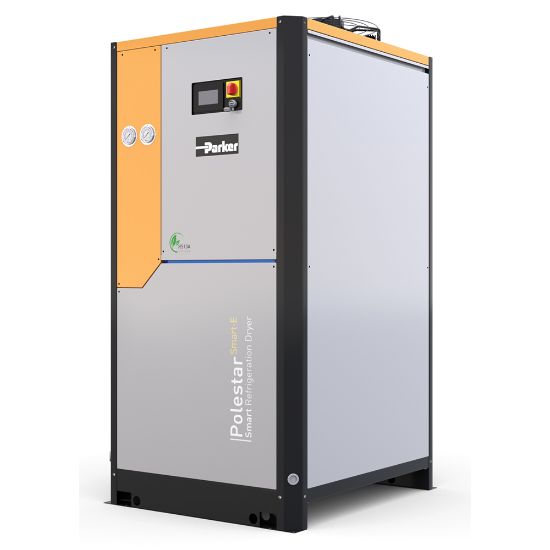

Parker PSE460-A4X03DF14EITS - PoleStar Smart-E Medium to Large Flow Compressed Air Refrigeration Dryers

Effective removal of water vapour (to +3°C pdp) from compressed air at low operating costs. Dual frequency ready, with volume flows up to 10800m³/h (50Hz) or 11812m³/hr (60Hz) @ 7 barg.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. PSE460-A4X03DF14EITS

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Pressure Dew Point	Options: 7°C (45°F) or 10°C (50°F)	Power Consumption	4 kW (60Hz)
Flow Rate	3005.0 m3/hour at 7 barg, 60Hz	Application	Compressed Air Applications
Connection Type	BSPP	Operating Temperature	41 to 149 °F
Technology	Filtration	Division	Gas Separation and Filtration Division EMEA
Refrigerant Type	R513A (Low GWP Refrigerant)	Electrical Requirements	400V 3ph 50Hz / 460V 3ph 60Hz
Ambient Temperature	122.0 °F Maximum	Industry	Industrial Manufacturing Equipment
Product Series	PoleStar Smart-E	Specifications Met	PED 2014/68/EU Fluid Group II
Brand	Parker	Width	973.0 mm
Height	2055.0 mm	Operating Pressure	29 to 203 psig
Weight	838 lb	Product Style	Refrigeration
Depth	50.7 inch	Ingress Protection Rating	IP54 Indoor Use Only
Division	Gas Separation and Filtration Division EMEA	Port Size	DIN100
Flow Rate	2760 m³/h @ 7 barg (1625 cfm @ 102 psig) 50 Hz	Cooling Method	Air Cooled
