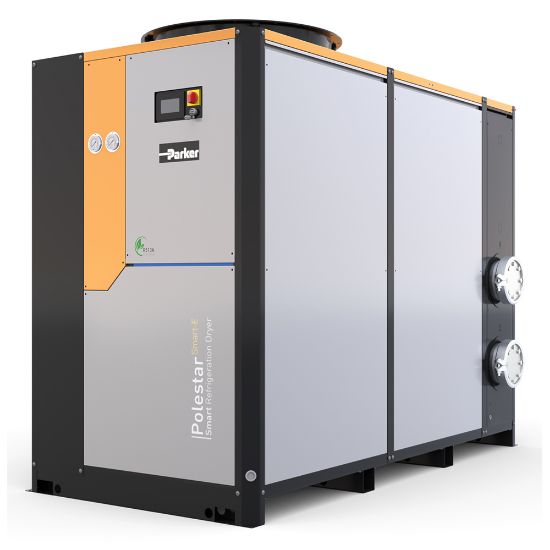

Parker PSE1500-A4X03DF14EITS - PoleStar Smart-E Medium to Large Flow Compressed Air Refrigeration Dryers

Effective removal of water vapour (to +3°C pdp) from compressed air at low operating costs. Dual frequency ready, with volume flows up to 10800m³/h (50Hz) or 11812m³/hr (60Hz) @ 7 barg.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. PSE1500-A4X03DF14EITS

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Electrical Requirements	400V 3ph 50Hz / 460V 3ph 60Hz	Weight	1070 kg
Ambient Temperature	122.0 °F Maximum	Industry	Industrial Manufacturing Equipment
Product Series	PoleStar Smart-E	Port Size	DIN200
Flow Rate	9935.0 m3/hour at 7 barg, 60Hz	Specifications Met	PED 2014/68/EU Fluid Group II
Power Consumption	11.15 kW (50Hz)	Brand	Parker
Product Style	Refrigeration	Division	Gas Separation and Filtration Division EMEA
Ingress Protection Rating	IP54 Indoor Use Only	Pressure Dew Point	Options: 7°C (45°F) or 10°C (50°F)
Operating Pressure	2 to 14 barg	Height	80.3 inch
Division	Gas Separation and Filtration Division EMEA	Application	Compressed Air Applications
Refrigerant Type	R513A (Low GWP Refrigerant)	Depth	99.6 inch
Connection Type	BSPP	Technology	Filtration
Width	1517.0 mm	Operating Temperature	28 to 65 °C
Cooling Method	Air Cooled	Flow Rate	9000 m³/h @ 7 barg (5297 cfm @ 102 psig) 50 Hz
