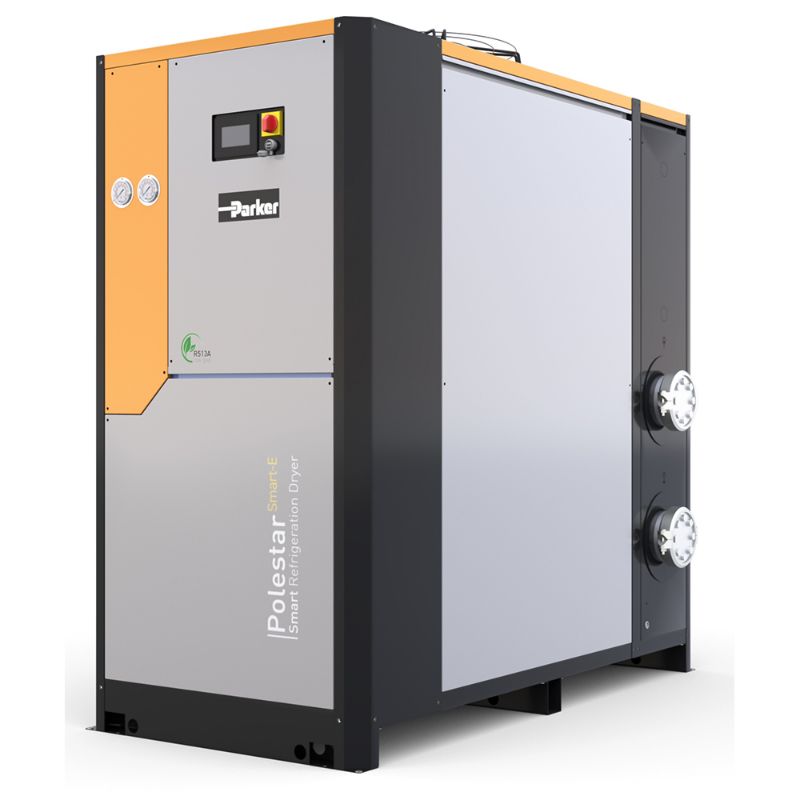

Parker PSE1200-A4X03DF14EITS - PoleStar Smart-E Medium to Large Flow Compressed Air Refrigeration Dryers

Effective removal of water vapour (to +3°C pdp) from compressed air at low operating costs. Dual frequency ready, with volume flows up to 10800m³/h (50Hz) or 11812m³/hr (60Hz) @ 7 barg.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. PSE1200-A4X03DF14EITS

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Industry	Industrial Manufacturing Equipment	Product Series	PoleStar Smart-E
Electrical Requirements	400V 3ph 50Hz / 460V 3ph 60Hz	Flow Rate	7956.0 m3/hour at 7 barg, 60Hz
Brand	Parker	Specifications Met	PED 2014/68/EU Fluid Group II
Depth	77.7 inch	Height	2055.0 mm
Product Style	Refrigeration	Operating Pressure	29 to 203 psig
Weight	1874 lb	Division	Gas Separation and Filtration Division EMEA
Ingress Protection Rating	IP54 Indoor Use Only	Power Consumption	11 kW (60Hz)
Ambient Temperature	50.0 °C Maximum	Application	Compressed Air Applications
Pressure Dew Point	Standard: 3°C (37°F)<br/>	Port Size	DIN150
Technology	Filtration	Division	Gas Separation and Filtration Division EMEA
Refrigerant Type	R513A (Low GWP Refrigerant)	Connection Type	BSPP
Width	1205.0 mm	Operating Temperature	41 to 149 °F
Cooling Method	Air Cooled	Flow Rate	7200 m³/h @ 7 barg (4238 cfm @ 102 psig) 50 Hz
