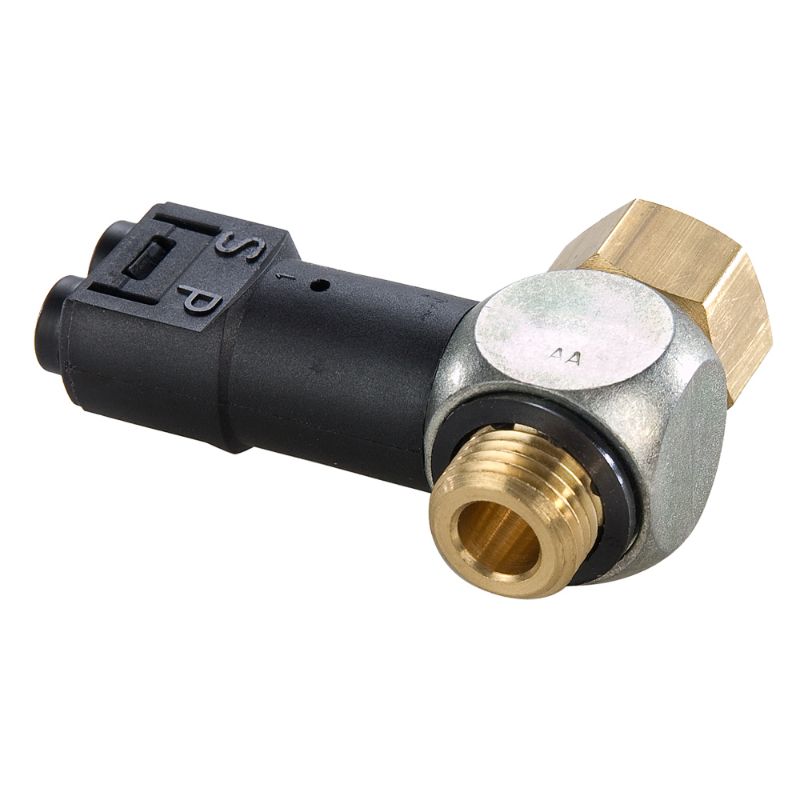

Parker PSBJ731-0 - Threshold Sensor Fittings - Inch

Threshold Sensors detects the pressure drop when a cylinder reaches the end of its stroke. They produce a pneumatic output signal when the pressure drop in the exhaust chamber of the cylinder goes below their back pressure threshold.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. PSBJ731-0

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Maximum Operating Temperature	140 °F	Division	Fluid System Connectors Division
Bolt Material	Brass	Body Material	Composite
Maximum Operating Pressure	115 psi	Response Time	3 ms
Application	Textile	Minimum Operating Temperature	5 °F
Operational Life	10 Million	Port Size	10-32 \| 1/8" \| 1/4" \| 3/8" \| 1/2"
Operating Temperature	-15° to +60° °C	Operating Pressure	0 to 10.3 bar
Maximum Operating Frequency	10 Hz	Connection 1 Thread Size (inch)	10-32
Connection 1 Style	UNF	Style	Male Thread
Pilot Line (inch)	5/32	Type	Pneumatic - 5/32 Pilot
Port Type	NPT/UNF	Port Size (inch)	10-32
