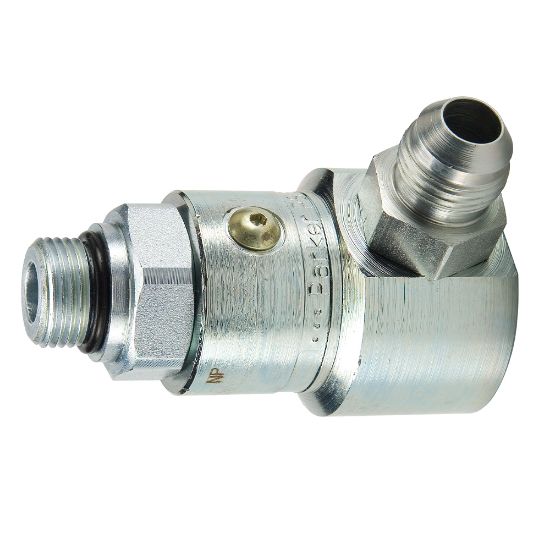

Parker PS490503-4-4 - High Pressure, Inline Hydraulic Swivels - PS Series

Parker's swivels are designed to eliminate hose twist and torque that may contribute to premature hose failure.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. PS490503-4-4

$22.19

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Configuration	90 degree
Division	Quick Coupling Division	Minimum Operating Temperature	-40 °F
Plating Type	Zinc with clear trivalent chromate	Maximum Operating Temperature	250 °F
Body Material	Steel	Seal Material	Nitrile
Maximum Working Pressure (psi)	5000	Shaft Connection Thread Size (inch)	7/16 - 20 UNF
Housing Connection Thread Size (inch)	7/16 - 20 UNF	Shaft Connection Style	Male SAE O-ring Straight Thread
Body Size (inch)	1/4	Configuration	90 degree
Housing Connection Style	Male JIC 37 degree

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
