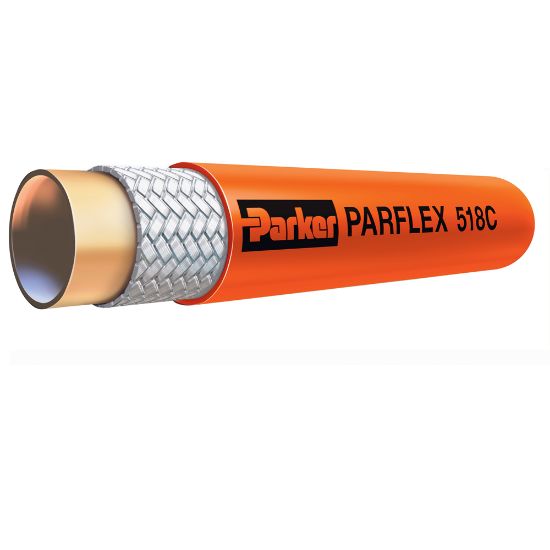

Parker 518C-12 - Non-Conductive Thermoplastic Hoses - 518D

Name: Parker 518C-12 - Non-Conductive Thermoplastic Hoses - 518D
SKU: 518C-12
Price: 13.45 USD
Availability: InStock

Parker’s Non-Conductive 100R7 hose has a high-density braid to handle maximum impulse life. Most 518D sizes feature a nylon core tube. Available as a formed hose and/or bonded hose.

AFP Availability:

75 In Stock

Johnson City, TN

75 (Pickup only)

Partner Available:

45 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. 518C-12

$13.45/foot

Qty:

Products specifications

Attribute name	Attribute value
UOM	FT	Hose Inner Tube Material	Copolyester
Minimum Operating Temperature	-40	Application	Hydraulics
Hose Reinforcement Material	Fiber	Minimum Bend Radius	5
Cover Material	Polyurethane	Specifications Met	ANSI A92.2
Weight	0.21	Maximum Operating Pressure	1250
Inside Diameter	3/4	Outside Diameter	1.090
Division	Parflex Division	Maximum Operating Temperature	212
Compatible Fitting	56 Series	Size	-12
Media	Petroleum Hydraulic Fluids	Material - Hose Inner Tube	OBSOLETE: Copolyester
Hose I.D. (inch)	3/4
