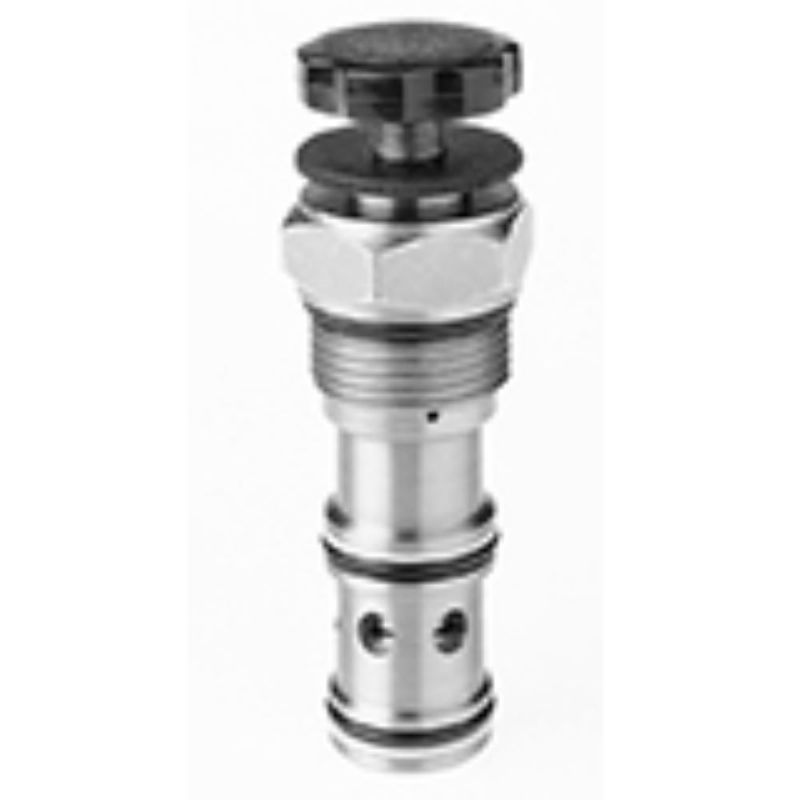

Parker PRH162K30 - Pilot Operated Pressure Reducing Valves

Parker’s pilot operated pressure reducing valves are capable of flows up to 150 lpm (40 gpm) and regulating pressures up to 350 bar (5000 psi) and are commonly used for setting the pressure of a sub-circuit within a hydraulic system.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. PRH162K30

$228.25/each

Products specifications

Attribute name	Attribute value
UOM	EA	Weight	0.9 kg
Maximum Operating Pressure	350 bar	Seal Material	Nitrile
Actuation Type	Pressure Sensing	Valve Material	All parts steel. All operating parts hardened steel.
Maximum Pressure Setting	3000 psi	Maximum Inlet Pressure Rating	380 bar
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Adjustment Mechanism	Knob	Maximum Tank Pressure	5000 psi
Configuration	Pressure Reducing	Function	Pilot Operated
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Pressure Control Sensitivity	60 per turn bar
Cavity Size	C16-3	Maximum Operating Temperature	+121 °C
Division	Hydraulic Cartridge Systems Division	Pressure Control Range	20.7-210 bar
Operation Type	Automatic	Body Material	N/A
Standard Setting Pressure	103.5 bar	Mounting Type	Screw in cartridge valve
Maximum Drain Flow Rate	0.94 L/min	Maximum Flow Rate	150 L/min
Installation Torque	73 lb-ft	Operating Temperature	-34 to +121 °C
Division	Hydraulic Systems Division	Minimum Operating Temperature	-30 °F
Flow Rate	150 L/min	Seal Material	Nitrile
Adjustment Mechanism	Knob	Flow Rate	40 GAL/MIN, 150 L/MIN
Pressure Control Range	300-3000 PSI, 20.7-210 BAR
