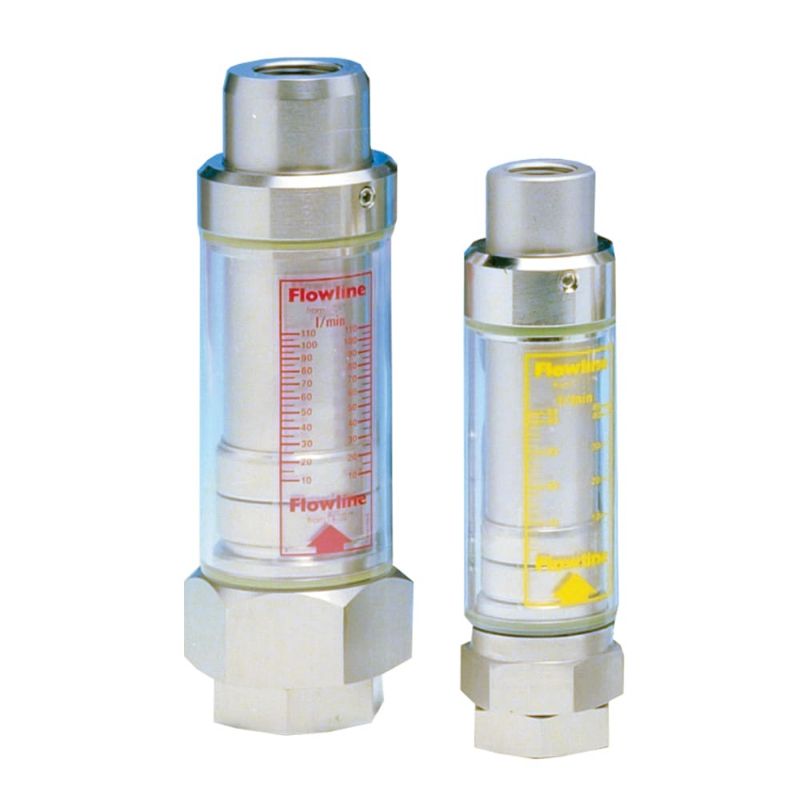

Parker FM26222112 - High Pressure Mechanical Flowmeter - Flowline

The Flowline Series is a range of rugged inline mechanical flowmeters that provide visual indication of fluid flow in hydraulic systems. Capable of measuring flows ranging from 1 - 360 L/PM. Maximum allowable working pressure: 350 bar (5076 psi).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. FM26222112

$545.78

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Brand	Parker
Technology	Filtration	Materials of Construction	Brass
Port Size	1/2 inch	For Fluid Type	Oil
Division	Hydraulic & Industrial Process Filtration Division EMEA	Division	Hydraulic & Industrial Process Filtration Division EMEA
Product Style	Flow Meter	Product Type	Condition Monitor
Seal Material	Fluoroelastomer	Industry	Industrial & Chemical Processing
Specifications Met	Pressure Directive	Accuracy	+/- 5% FSD
Operating Pressure	5000 psi	Operating Temperature	-20 to 90 °C
Body Material	Nickel Plate	Port Type	BSP Parallel Threads
Sensing Method	Variable Orifice Flow Meter	Width	41 mm
Height	41 mm	Length	165.5 mm
Diameter	46 mm	Flow Rate	2 to 20 L/min
Housing Material	Brass	For Fluid Type	Oil
Flow Rate	2 to 20 l/min

Product resources

Literature and Reference Materials

BULLETIN-High Pressure Mechanical Flowmeter - Flowline (PDF)
