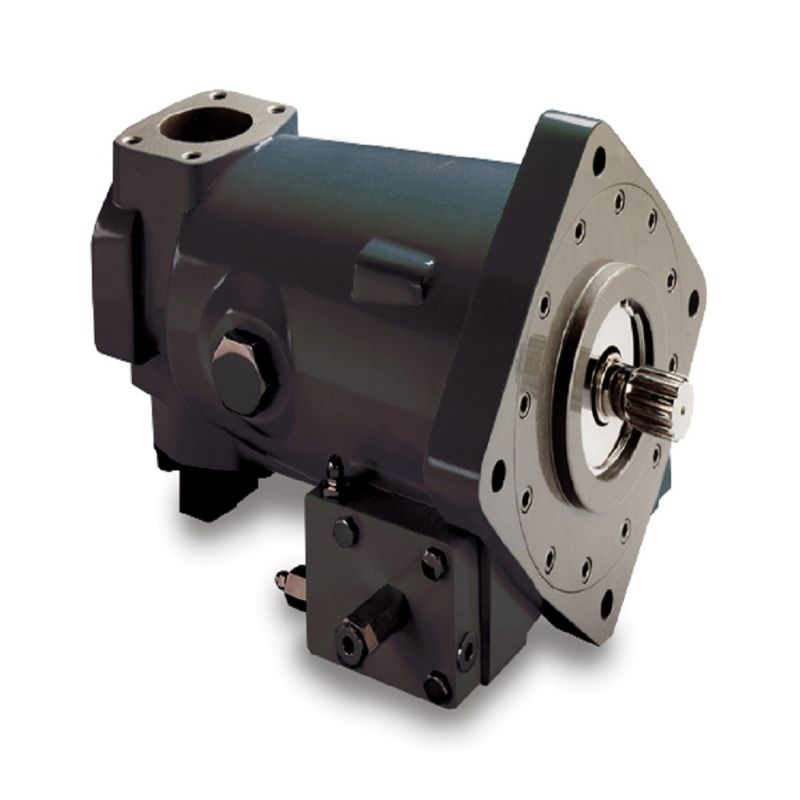

Parker PREMIER PISTON PUMP - PREMIER PISTON PUMPS

Note: This product is no longer available - please refer to the "Product Support" or "Recommended products" section of this page for details on any alternative products, or contact us for further assistance

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. PREMIER PISTON PUMP

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Filter Included	No	Division	Hydraulic Pump and Power Systems Division
Maximum Fluid Temperature	180	Minimum Fluid Temperature	-40
Maximum Operating Pressure	6000	Sensor Type	n/a
Circuit Path	Open	Body Material	Cast Iron
For Fluid Type	Phosphate-ester	Charge Pump Included	No
Radial Load Capacity	n/a	Direction of Rotation	Counterclockwise
Energy Recovery Capability	No	Drain Option	Yes
Media	Hydraulic Fluids	Shaft Type	ISO
Configuration	Tandem	Control Method	Load Sense
Mounting Option	ISO	Port Connection	ISO
Port Type	Flange	Thru-Drive Capability	Yes
Maximum Vacuum Flow Rate	n/a	Pump Type	Variable
Weight	325	Port Location	Opposing Ports
Operating Speed	2100 to 3200	Maximum Flow Rate	548
Maximum Noise Level	92.5	Maximum Displacement	16
Maximum Operating Speed	2550	Maximum Kinematic Viscosity	n/a
Minimum Kinematic Viscosity	n/a
