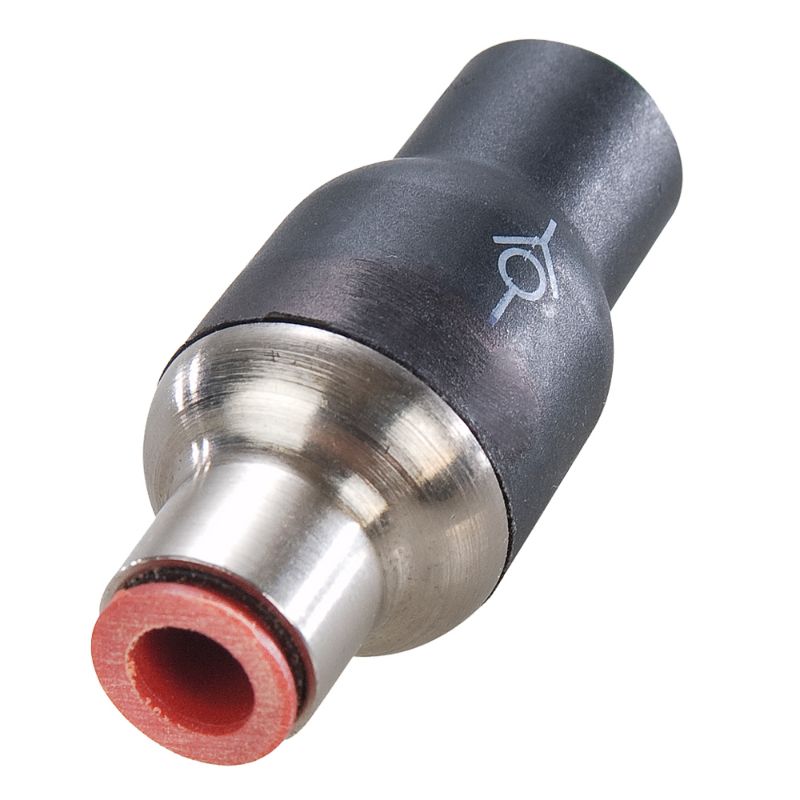

Parker 32PLCK-10M - Check Valves

Name: Parker 32PLCK-10M - Check Valves
SKU: 32PLCK-10M
Price: 40.65 USD
Availability: InStock

Parker's check valves allow compressed air to flow in one direction and prevent it from flowing in the other. Fitted upstream of the circuit to be protected, they provide total protection.

AFP Availability:

4 In Stock

Richmond, VA

Partner Available:

Quote Required

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. 32PLCK-10M

$40.65/each

Qty:

Products specifications

Attribute name	Attribute value
Maximum Operating Pressure	145 psi	Thread Material	N/A
Gripping Ring Material	Stainless Steel	Connection 2 Size	Push-to-Connect
Cracking Pressure	7 psi	Application	Pneumatics, Robotics, Textile, Semi-conductors, Packaging
Connection 2 Tube Outside Diameter	N/A	Seal Material	Nitrile
Connection 1 Size	Push-to-Connect	Body Material	Nylon
Product Style	Tube to Tube	Connection 2 Thread Size	N/A
Shape	In-Line	Minimum Operating Temperature	34 °F
Connection 1 Thread Size	N/A	Valve Configuration	One Way
Division	Fluid System Connectors Division	Connection Type	N/A
Maximum Operating Temperature	150 °F	Connection 1 Tube Outside Diameter	10 mm
Media	Compressed Air
