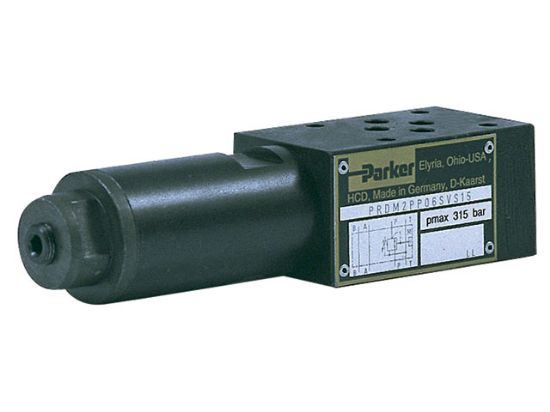

Parker PRDM2AA02SVS - PRDM Series - Pressure Reducing - NFPA D03 (CETOP 3, NG 6)

PRDM Series - Pressure Reducing Parker Manapak Subplate Sandwich Module

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. PRDM2AA02SVS

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Pkg Qty	1	Pressure Range	22 to 363 PSI (1.5 to 25 Bar)
UOM	EA	Gauge Port Size	4 SAE
Seals	Fluorocarbon	Adjustment Type	Screw
Controlled Ports	A Port	Max Flow (at 3000 PSI)	10.5 GPM (40 LPM)
Parker Group	Hydraulic	Max Pressure	5000 PSI (350 Bar)
Max Flow (at 3000 PSI)	10.5 GPM (40 LPM)	Subplate Pattern	NFPA D03 (CETOP 3, NG 6)
Seals	Fluorocarbon	Parker Division	Hydraulic Valve
Series	PRDM	Port Size	4 SAE
Pressure Range	22 to 363 PSI (1.5 to 25 Bar)	Port Type	SAE
Adjustment Type	Screw	Controlled Ports	A Port

Product resources

Sandwich Valves (PDF)
