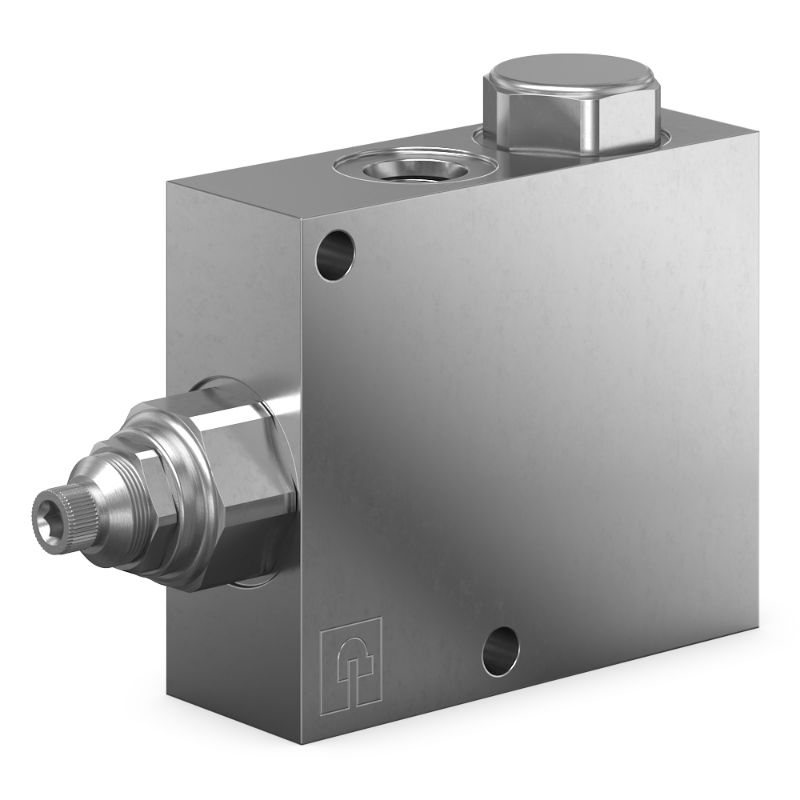

Parker PRCH101S20-8T - Pilot Operated Pressure Reducing Relieving Valves

Parker’s pilot operated acting reducing & relieving valves are used in applications where specific functions require reduced and regulated pressure. Capable of flows up to 150 lpm (40 gpm) and pressures up to 380 bar (5500 psi).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. PRCH101S20-8T

$0.01

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Installation Torque	N/A Nm
Cavity Size	n/a	Pressure Control Sensitivity	570 per turn psi
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Cracking Pressure	5 psi
Function	Pilot Operated	Configuration	Pressure Reducing/Relieving w/Reverse Flow Check
Leak Rate	N/A cc/min	Valve Material	All parts steel. All operating parts hardened steel
Adjustment Mechanism	Screw	Maximum Operating Pressure	350 bar
Pressure Control Range	400-2000 psi	Maximum Inlet Pressure Rating	5500 psi
Division	Hydraulic Cartridge Systems Division	Standard Setting Pressure	1000 psi
Minimum Operating Temperature	-35 °F	Body Material	Steel
Division	Hydraulic Systems Division	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Actuation Type	Pressure Sensing	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Mounting Type	Line Mounted	Maximum Tank Pressure	350 bar
Maximum Pressure Setting	138 bar	Seal Material	D-Ring (Standard)
Maximum Operating Temperature	+93 °C	Flow Rate	56.3 L/min
Maximum Flow Rate	56.3 L/min	Operation Type	Automatic
Weight	2.2 lb	Port Thread Size	SAE-8
Maximum Drain Flow Rate	0.25 Gal/min	Operating Temperature	-35 to +200 °F
Pressure Control Range	400-2000 PSI, 27-138 BAR	Cracking Pressure	5 PSI, 0.3 BAR
Flow Rate	15 GAL/MIN, 56.3 L/MIN	Adjustment Mechanism	Screw
Seal Material	D-Ring (Standard)	Mounting Type	Line Mounted
