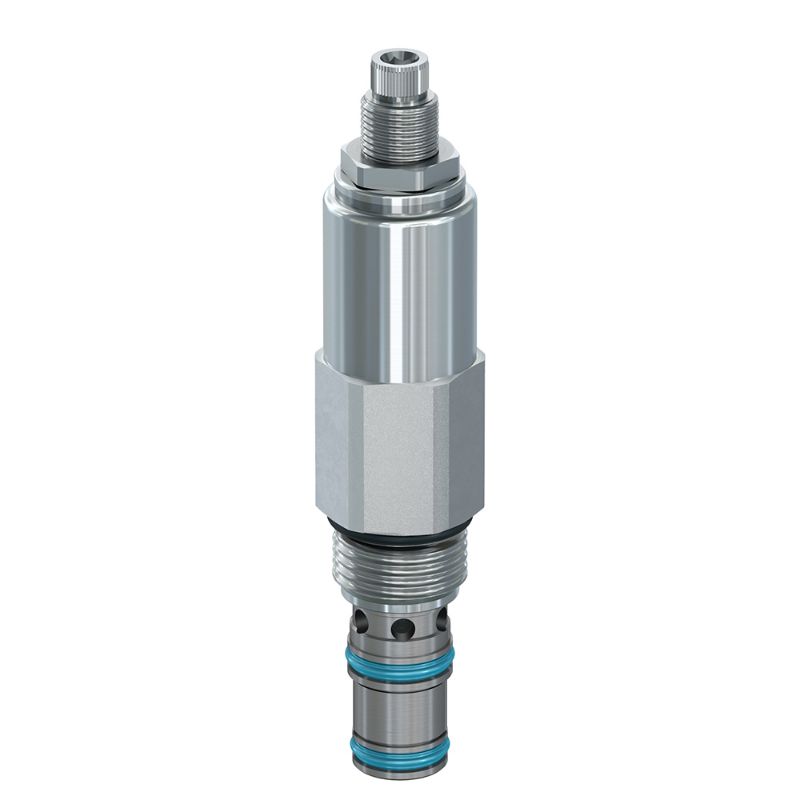

Parker PR103F02 - Direct Acting Pressure Reducing Relieving Valves

Parker’s direct acting reducing & relieving valves are used in intermittent duty applications where specific functions require reduced and regulated pressure. Capable of flows up to 56 lpm (13 gpm) and pressures up to 420 bar (6000 psi).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. PR103F02

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Weight	0.5	Operating Temperature	-35 to +200
Maximum Tank Pressure	1800	Pressure Control Range	75-200
Maximum Flow Rate	15	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Installation Torque	50-56	Maximum Pressure Differential	1000
Adjustment Mechanism	Fixed	Body Material	n/a
Function	Direct Acting	Mounting Type	Screw in cartridge valve
Actuation Type	Pressure Sensing	Maximum Operating Temperature	+200
Division	Hydraulic Systems Division	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Seal Material	D-Ring (Standard)	Pressure Control Sensitivity	n/a
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Maximum Inlet Pressure Rating	3000
Maximum Operating Pressure	3000	Standard Setting Pressure	100
Minimum Operating Temperature	-35	Configuration	Pressure Reducing/Relieving
Cavity Size	C10-3	Operation Type	Automatic
Maximum Drain Flow Rate	0.03	Valve Material	All parts steel. All operating parts hardened steel.
Maximum Pressure Setting	200	Flow Rate	15
Maximum Inlet Pressure Rating	3000 PSI, 210 BAR	Adjustment Mechanism	Fixed
Flow Rate	15 GAL/MIN, 56 L/MIN	Seal Material	D-Ring (Standard)
Pressure Control Range	75-200 PSI, 5.2-13.8 BAR
