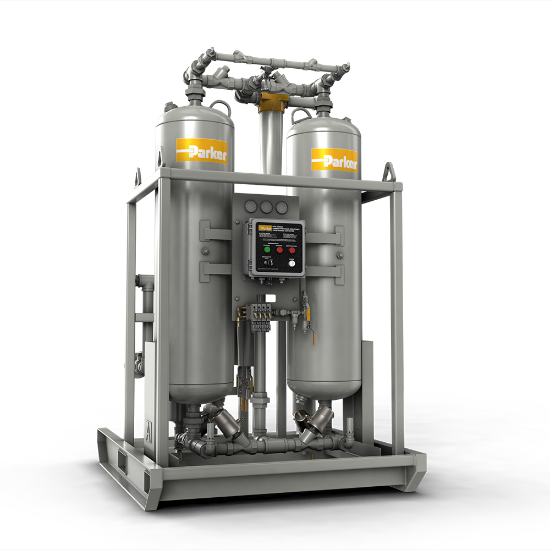

Parker PPD1000RN-350 - PPD Series Portable Desiccant Compressed Air Dryers

Highly engineered portable desiccant compressed air treatment systems, ideal for rental applications, that deliver high quality compressed air in accordance with ISO8573-1, the international standard for compressed air.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. PPD1000RN-350

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Weight	5700	Minimum Operating Pressure	80.0
Depth	84.5	Electronics Type	ETL Listed
Width	70	Pressure Dew Point	-40
Maximum Ambient Temperature	120.0	Maximum Operating Temperature	120.0
Minimum Operating Temperature	40.0	Minimum Ambient Temperature	40.0
Electrical Requirements	115V/1Ph/50-60Hz	Connection Type	3” BOSS/NPT/FLG
Height	92.8	Accessories Included	Dewpoint Probe with Digital Dewpoint Display
Brand	Parker	Communication Interface	Modbus via Ethernet and RS485
Ingress Protection Rating	NEMA 4	Industry Application	Portable / Rental Equipment
Division	Industrial Gas Filtration and Generation Division	Maximum Operating Pressure	150.0
Technology	Heatless Regeneration	Product Type	Desiccant (Adsorption) Dryer
Design Rating	350 psig (24 barg) inlet, 100°F (38°C) inlet & 100°F (38°C) ambient	Flow Rate	1800 scfm (3051 m3/h)
Cooling Method	No cooler	Controller Type	Advanced PLC
