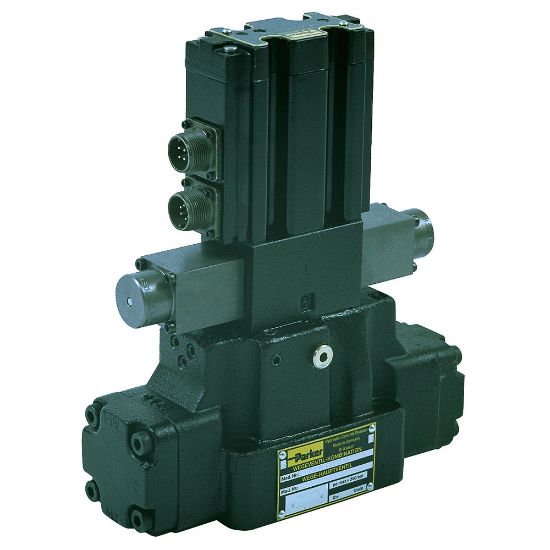

Parker D41FLB42DC4NW0 - OBSOLETE: Proportional Directional Control Valve - D41FL/ D91FL Series

This product is no longer available - please refer to the “Recommended Products” section of this page for alternative products, or contact us for further assistance.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. D41FLB42DC4NW0

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Actuation Type	Hydraulic Pressure	Maximum Operating Pressure	5000
Pilot Inlet / Drain Locations	Internal Pilot / Internal Drain	Spool Code	V-Notch Spool
Valve Type	Proportional Directional Control Valve	Maximum Operating Temperature	140
Body Material	Gray Iron	Division	Hydraulic Valve Systems Division
Spool Type	V-Notch Spool	Weight	24
Additional Options	Consult catalog for additional features.	Signal Input	DC Voltage Logic Interface
Maximum Flow Rate	26	Minimum Operating Temperature	-4
Seal Material	Nitrile	Flow Rate (gpm)	26.5
Mounting Type	Manifold	Size	NG16, CETOP 7
Maximum Operating Pressure	5000 PSI

Product resources

Literature and Reference Materials

Proportional Directional Control Valve Catalog - D41FL/D91FL(North America) (PDF)
