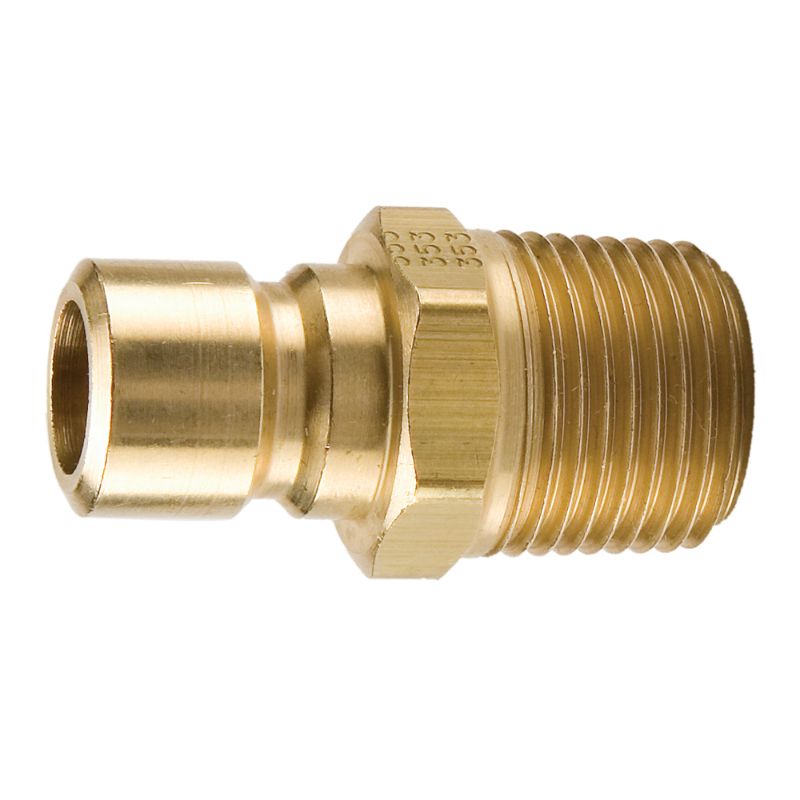

Parker PN554 - Injection Molding, Coolant Quick Couplings - Moldmate Series

Parker's mold coolant quick couplers and nipples are specifically designed to provide a quick and easy way to connect and disconnect low pressure fluid lines during mold changes.

Availability:	Quote Required
Partner Available:	128 In Stock

Brand Parker

Part No. PN554

$6.38

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Operating Temperature	400 °F
Division	Quick Coupling Division	Minimum Operating Temperature	-20 °F
Hex Size	0.88 inch	Dimensional Weight	0.031160071942446042 lb
Seal Material	na	Plating Type	na
Application	Hydraulics	Product Type	Manual Connect
Maximum Operating Pressure	200 psi	Connection Hose I.D. (inch)	na
Body Material	BRASS	Body Size (inch)	1/2
Connection Type	Male NPTF	Coupling Half	Male Nipple
Connection Thread Size (inch)	1/2 - 14	Flow Rate	12
Valve Style	Unvalved

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
