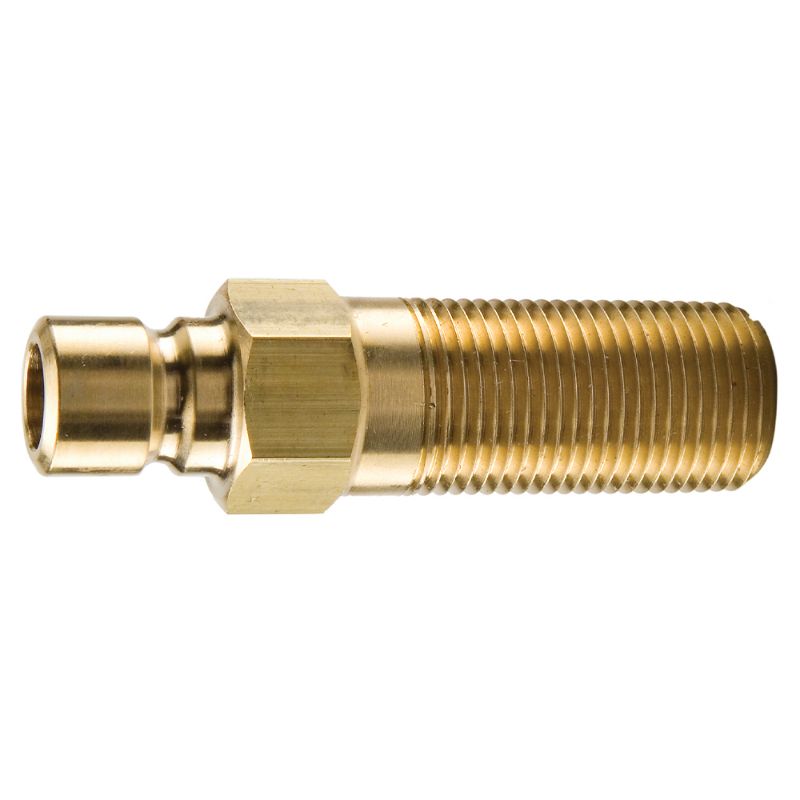

Parker PN352-40 - Injection Molding, Coolant Quick Couplings - Moldmate Series

Name: Parker PN352-40 - Injection Molding, Coolant Quick Couplings - Moldmate Series
SKU: PN352-40
Price: 18.56 USD
Availability: InStock

Parker's mold coolant quick couplers and nipples are specifically designed to provide a quick and easy way to connect and disconnect low pressure fluid lines during mold changes.

AFP Availability:

1 Limited Stock

North Chesterfield, VA

Partner Available:

30 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. PN352-40

$18.56/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Quick Coupling Division
Seal Material	na	Maximum Operating Pressure	200 psi
Minimum Operating Temperature	-20 °F	Application	Hydraulic, mold coolant
Plating Type	na	Product Type	Manual Connect
Maximum Operating Temperature	400 °F	Hex Size	9/16 inch
Valve Style	Unvalved	Body Size (inch)	3/8
Connection Hose I.D. (inch)	na	Body Material	BRASS
Coupling Half	Male Nipple	Flow Rate	6
Connection Type	Male NPTF (extended length)	Connection Thread Size (inch)	1/4 - 18
