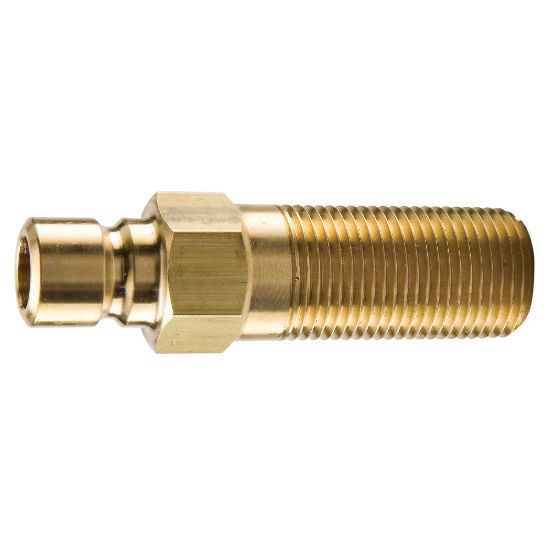

Parker PN250-40 - Injection Molding, Coolant Quick Couplings - Moldmate Series

Parker's mold coolant quick couplers and nipples are specifically designed to provide a quick and easy way to connect and disconnect low pressure fluid lines during mold changes.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. PN250-40

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Hex Size	3/8 inch	Product Type	Manual Connect
Maximum Operating Pressure	200 psi	Plating Type	na
Minimum Operating Temperature	-20 °F	Seal Material	na
Division	Quick Coupling Division	Maximum Operating Temperature	400 °F
Application	Hydraulic, mold coolant	Flow Rate	3
Connection Thread Size (inch)	1/16 - 27	Valve Style	Unvalved
Body Size (inch)	1/4	Connection Hose I.D. (inch)	na
Body Material	BRASS	Connection Type	Male NPTF (extended length)
Coupling Half	Male Nipple

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
