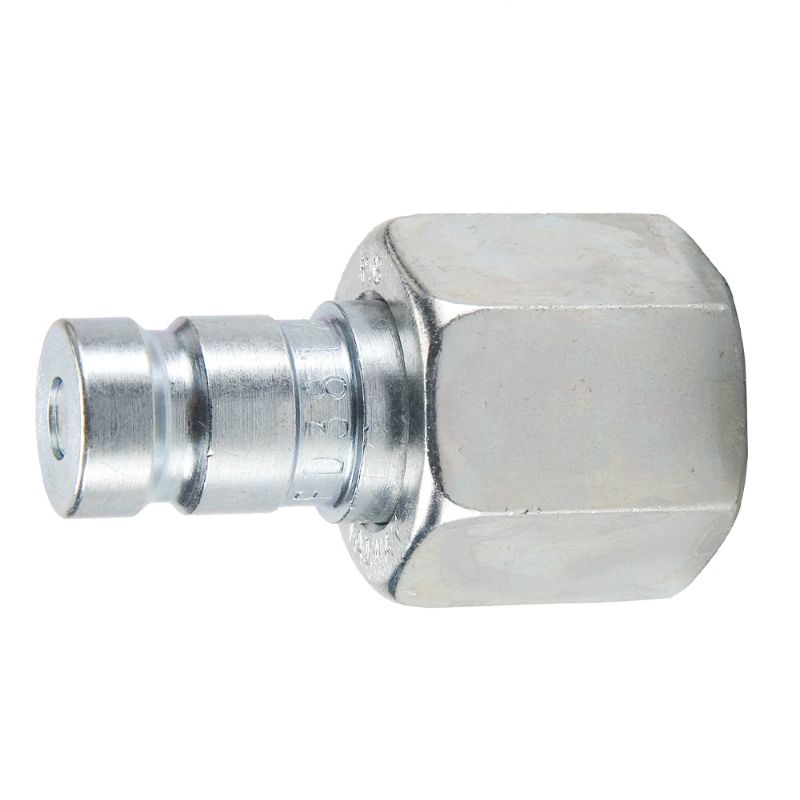

Parker PD38BTX - Test Port, Diagnostic Quick Couplings, ISO 15171-1 - PD Series

Parker's diagnostic quick couplers and test point nipples provide easy connections for mechanical gauges or specialized diagnostic equipment including Parker's SensoControl meters and accessories.

Availability:	Quote Required
Partner Available:	202 In Stock

Brand Parker

Part No. PD38BTX

$21.89

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Specifications Met	ISO 15171-1
Valve Type	Non-spill	Seal Material	Nitrile
Product Type	Push to Connect	Dimensional Weight	0.01999400479616307 lb
Maximum Operating Pressure	6000 psi	Application	Diagnostics
Body Size	1/8 inch	Hex Size	n/a inch
Minimum Operating Temperature	-40 °F	Plating Type	Zinc with clear trivalent chromate
Body Material	Steel	Maximum Operating Temperature	250 °F
Division	Quick Coupling Division	Flow Rate	0.8 Gal/min
Tube Size (inch)	1/2	Connection Type	Triple-Lok
Coupling Half	Male Nipple	Connection Thread Size (inch)	na
