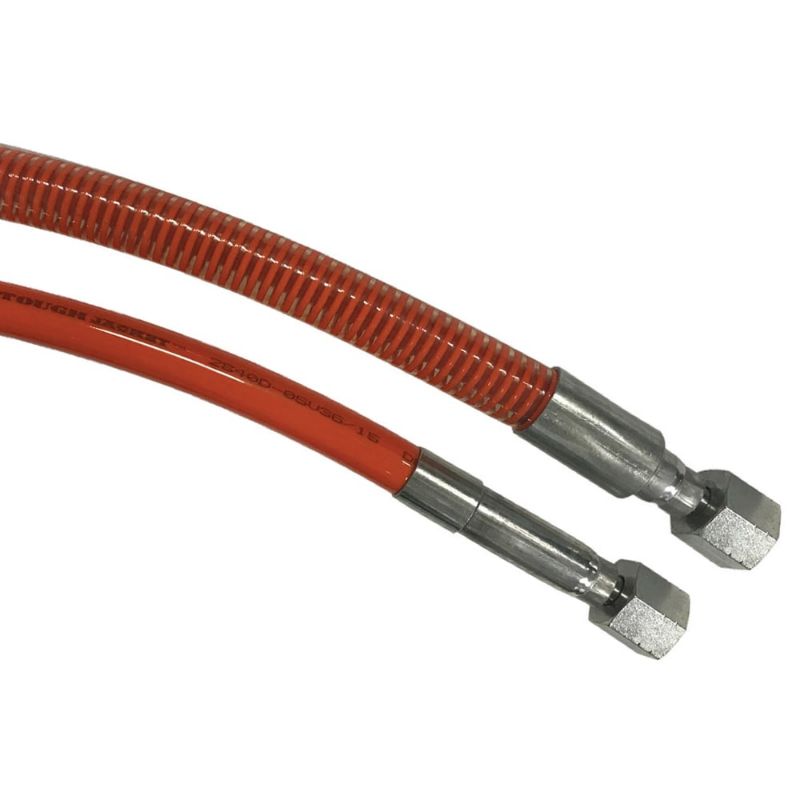

Parker 2740D-03V34/15 - Ultra High Pressure TOUGHJACKET™ Hose

Name: Parker 2740D-03V34/15 - Ultra High Pressure TOUGHJACKET™ Hose
SKU: 2740D-03V34/15
Price: 29.84 USD
Availability: InStock

TOUGHJACKET PVC-free water blast hose features a compact O.D. that’s up to 25% smaller than PVC-covered hoses, creating an ergonomic advantage for operators.

AFP Availability:

84 In Stock

North Chesterfield, VA

Partner Available:

Quote Required

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. 2740D-03V34/15

$29.84/foot

Qty:

Products specifications

Attribute name	Attribute value
UOM	FT	Compatible Fitting	2X Series
Hose Inner Tube Material	Polyoxymethylene (POM)	Media	Water
Size	-3	Hose Cover Type	ToughJACKET™
Maximum Operating Temperature	158 °F	Minimum Operating Temperature	14 °F
Application	Waterblasting	Cover Material	Polyurethane
Design Factor	2.5:1	Maximum Operating Pressure	2800 bar
Weight	0.58 kg/m	Hose Reinforcement Material	6 Spirals of Maximum Tensile Steel Wire
Specifications Met	DIN 1829-2	Minimum Bend Radius	8 inch
Division	Parflex Division	Inside Diameter	4.8 mm
Outside Diameter	0.680 inch	Hose I.D. (size)	-3
Notes	Use PFX30-03-TJ	Maximum Working Pressure (psi)	40,600

Product resources

Compliance, Certifications & Safety

Literature and Reference Materials

Selector Guides

UHP Waterblast Selection Poster--4900-WB-Selection (PDF)
