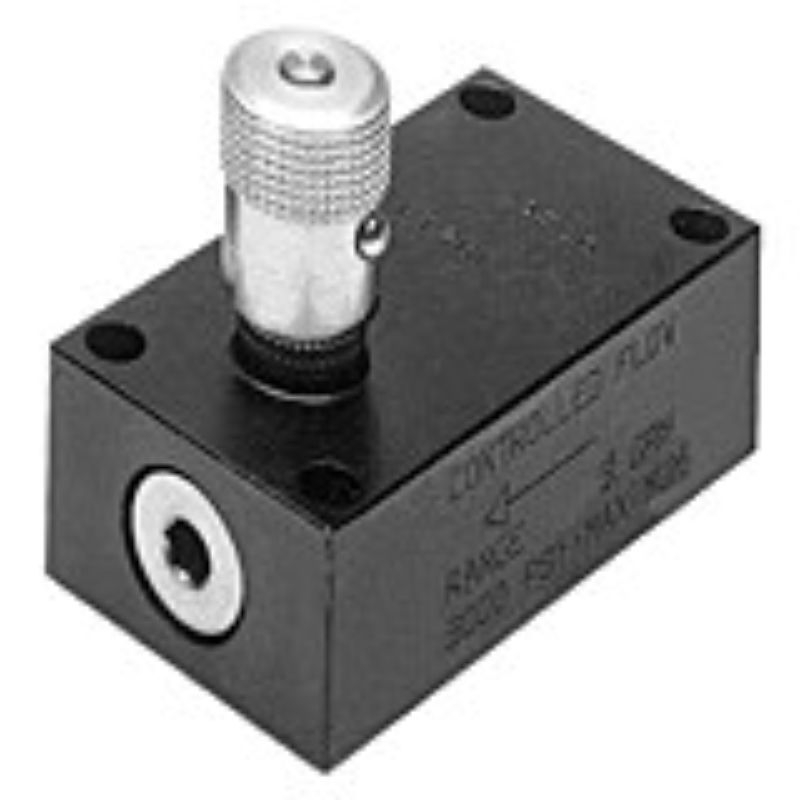

Parker PCMS400S - Flow Control Valve, Subplate Mounted - PC*MS Series

Parker’s PMCS series valves are designed to regulate flow at a selected rate.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. PCMS400S

$4,076.25/each

Products specifications

Attribute name	Attribute value
UOM	EA	Connection Size	1/4 inch
Division	Hydraulic Valve Systems Division	Knob Style	Std Knob
Configuration	Subplate Mount	Maximum Operating Pressure	3000
Maximum Operating Temperature	+250 °F	Function	Pressure Compensated Flow Control
Body Material	Steel	Connection Type	NPT
Minimum Flow Rate	0.3	Maximum Flow Rate	3.0
Minimum Operating Temperature	-40 °F	Actuation Type	Manually
Seal Material	Buna	Maximum Operating Pressure	3000 PSI
Mounting Type	Subplate	Maximum Flow Rate	3.0 GPM

Product resources

Literature and Reference Materials

CATALOGUE - Flow Control Valve Series PCMS (Europe and Asia) (PDF)
