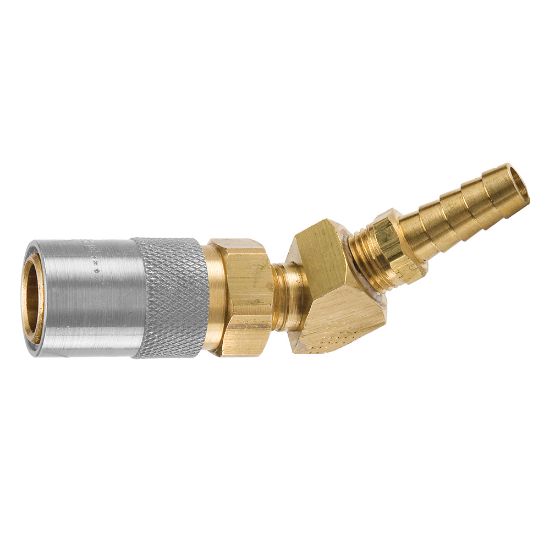

Parker PC326V - Injection Molding, Coolant Quick Couplings - Moldmate Series

Parker's mold coolant quick couplers and nipples are specifically designed to provide a quick and easy way to connect and disconnect low pressure fluid lines during mold changes.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. PC326V

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Seal Material	Silicone - Fluorocarbon	Product Type	Manual Connect
Application	Mold Coolant	Plating Type	Zinc with clear trivalent chromate on sleeve
Maximum Operating Temperature	400 °F	Hex Size	0.88 inch
Maximum Operating Pressure	200 psi	Dimensional Weight	0.05496043165467626 lb
Minimum Operating Temperature	-15 °F	Division	Quick Coupling Division
Connection Thread Size (inch)	na	Coupling Half	Female Coupler
Body Size (inch)	3/8	Connection Hose I.D. (inch)	3/8
Body Material	BRASS	Connection Type	Hose barb, 45 degree
Valve Style	Poppet	Flow Rate	6
