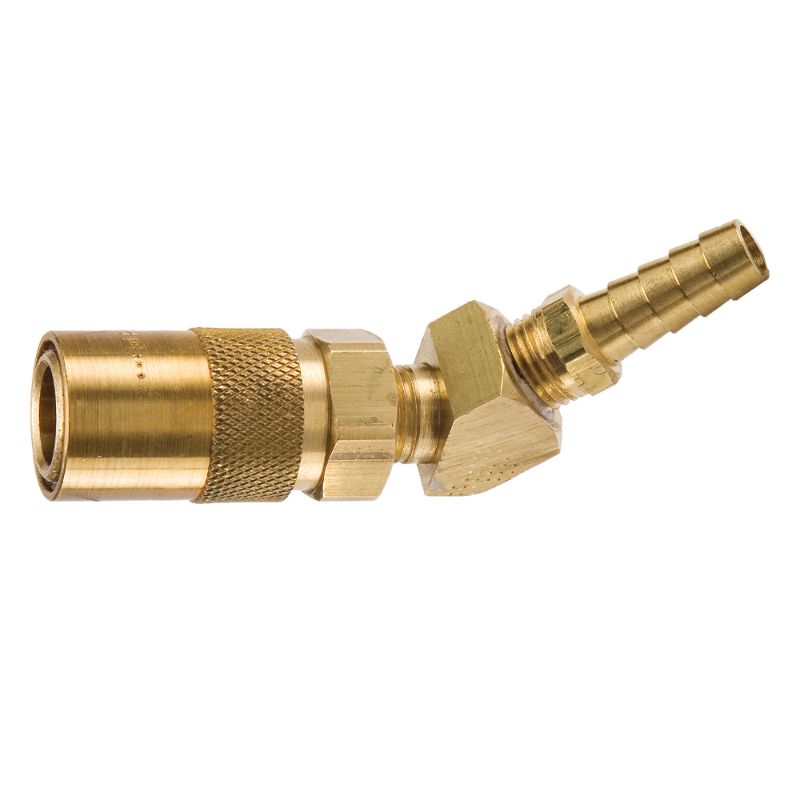

Parker PC326 - Injection Molding, Coolant Quick Couplings - Moldmate Series

Parker's mold coolant quick couplers and nipples are specifically designed to provide a quick and easy way to connect and disconnect low pressure fluid lines during mold changes.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. PC326

$27.85

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Dimensional Weight	0.05496043165467626 lb
Seal Material	Silicone	Application	Hydraulics
Product Type	Manual Connect	Maximum Operating Pressure	200 psi
Hex Size	0.88 inch	Division	Quick Coupling Division
Maximum Operating Temperature	400 °F	Plating Type	na
Minimum Operating Temperature	-20 °F	Connection Thread Size (inch)	na
Coupling Half	Female Coupler	Flow Rate	6
Connection Hose I.D. (inch)	3/8	Connection Type	Hose barb, 45 degree
Valve Style	Unvalved	Body Size (inch)	3/8
Body Material	BRASS
