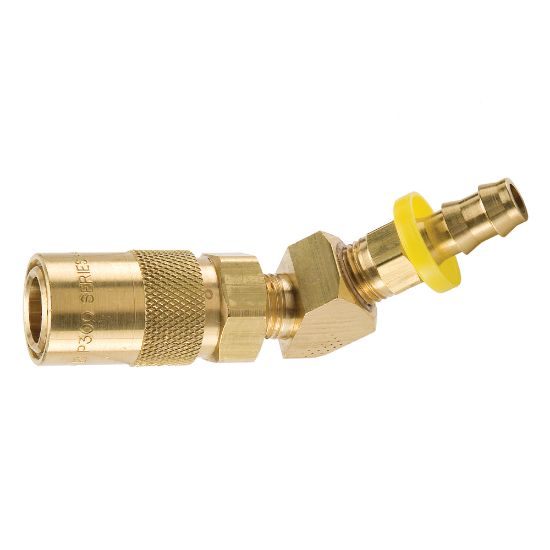

Parker PC326-BP - Injection Molding, Coolant Quick Couplings - Moldmate Series

Parker's mold coolant quick couplers and nipples are specifically designed to provide a quick and easy way to connect and disconnect low pressure fluid lines during mold changes.

Availability:	Quote Required
Partner Available:	420 In Stock

Brand Parker

Part No. PC326-BP

$29.46

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Dimensional Weight	0.05341726618705036 lb
Maximum Operating Pressure	200 psi	Hex Size	0.88 inch
Plating Type	na	Minimum Operating Temperature	-20 °F
Maximum Operating Temperature	400 °F	Division	Quick Coupling Division
Product Type	Manual Connect	Seal Material	Silicone
Application	Hydraulics	Body Material	BRASS
Connection Hose I.D. (inch)	3/8	Valve Style	Unvalved
Flow Rate	6	Coupling Half	Female Coupler
Connection Thread Size (inch)	na	Body Size (inch)	3/8
Connection Type	Push-Lok hose barb, 45 degree
