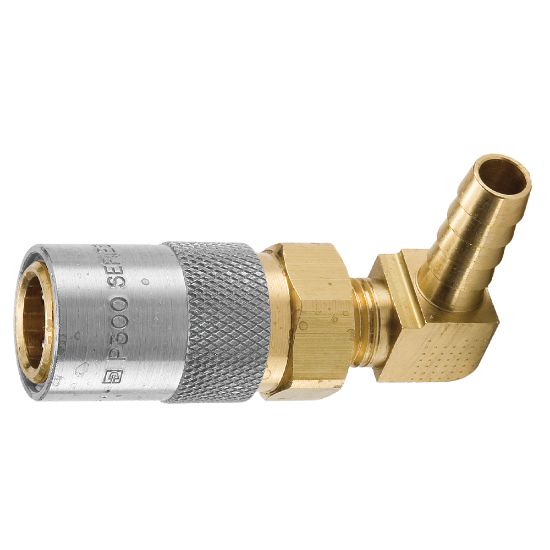

Parker PC214AV - Injection Molding, Coolant Quick Couplings - Moldmate Series

Parker's mold coolant quick couplers and nipples are specifically designed to provide a quick and easy way to connect and disconnect low pressure fluid lines during mold changes.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. PC214AV

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Maximum Operating Pressure	200 psi	Plating Type	Zinc with clear trivalent chromate on sleeve
Maximum Operating Temperature	400 °F	Division	Quick Coupling Division
Minimum Operating Temperature	-15 °F	Dimensional Weight	0.02670863309352518 lb
Seal Material	Silicone - Fluorocarbon	Application	Hydraulics
Product Type	Manual Connect	Hex Size	0.63 inch
Body Size (inch)	1/4	Body Material	BRASS
Connection Hose I.D. (inch)	1/4	Connection Thread Size (inch)	na
Coupling Half	Female Coupler	Valve Style	Poppet
Flow Rate	3	Connection Type	Hose barb, 90 degree
