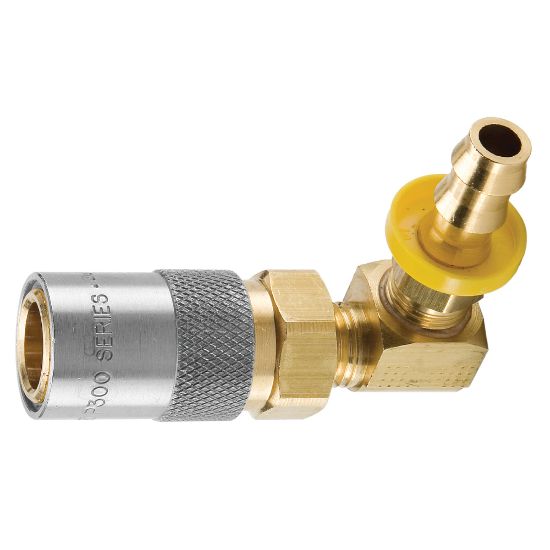

Parker PC214AV-BP - Injection Molding, Coolant Quick Couplings - Moldmate Series

Parker's mold coolant quick couplers and nipples are specifically designed to provide a quick and easy way to connect and disconnect low pressure fluid lines during mold changes.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. PC214AV-BP

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Seal Material	Silicone - Fluorocarbon	Dimensional Weight	0.02670863309352518 lb
Plating Type	Zinc with clear trivalent chromate on sleeve	Product Type	Manual Connect
Application	Hydraulics	Hex Size	0.63 inch
Maximum Operating Pressure	200 psi	Division	Quick Coupling Division
Minimum Operating Temperature	-15 °F	Maximum Operating Temperature	400 °F
Coupling Half	Female Coupler	Connection Thread Size (inch)	na
Valve Style	Poppet	Flow Rate	3
Body Material	BRASS	Connection Hose I.D. (inch)	1/4
Connection Type	Push-Lok hose barb, 90 degree	Body Size (inch)	1/4
